MJD date range from 57369.725845 to 57385.767500
386 readings over 16.04 days, tau0 = 3600 seconds

End-to-end phase change:	59.013 us
Phase change per day:	3.679 us
Peak-to-peak phase range:	59.013 us

Time difference (REF-DUT, last sample):

1.840 ms

Frequency offset (linear, R2=1.000):	4.25E-11
Frequency offset (endpoints):	4.26E-11

Drift (linear, R2=0.038):

-6.16E-14/day

(-4.31E-13/week, -1.85E-12/month, -2.25E-11/year)

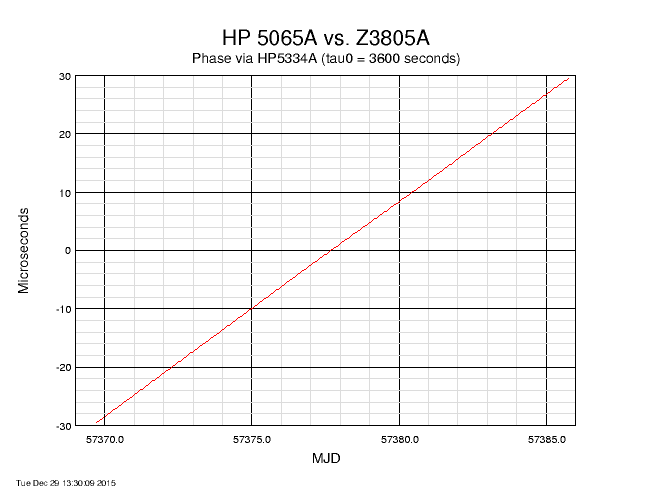

Raw Phase

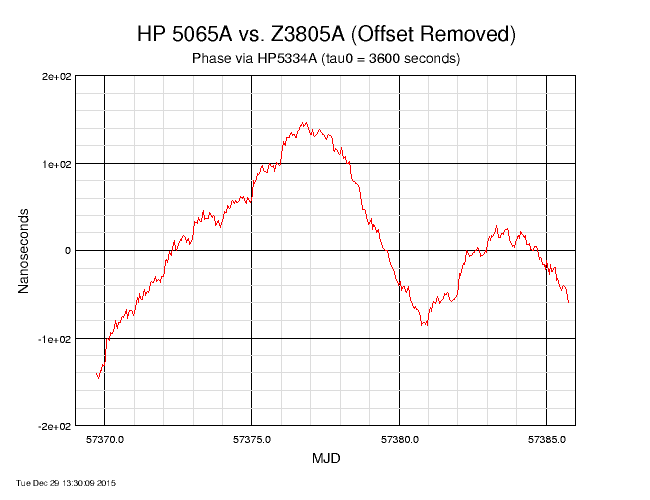

Offset Removed

Peak-to-peak noise:

293.109 ns

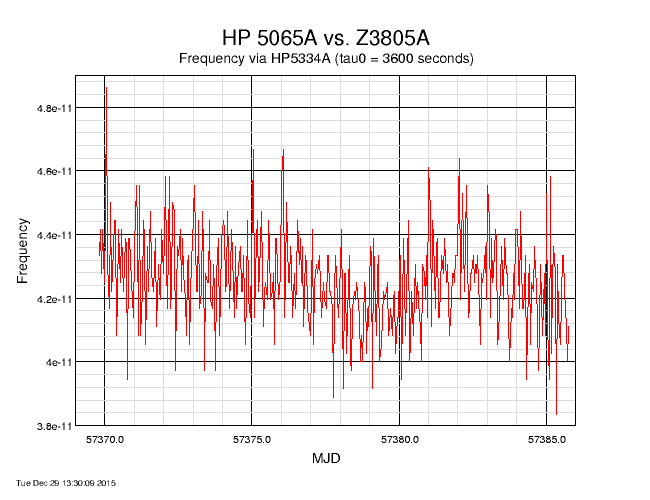

Frequency

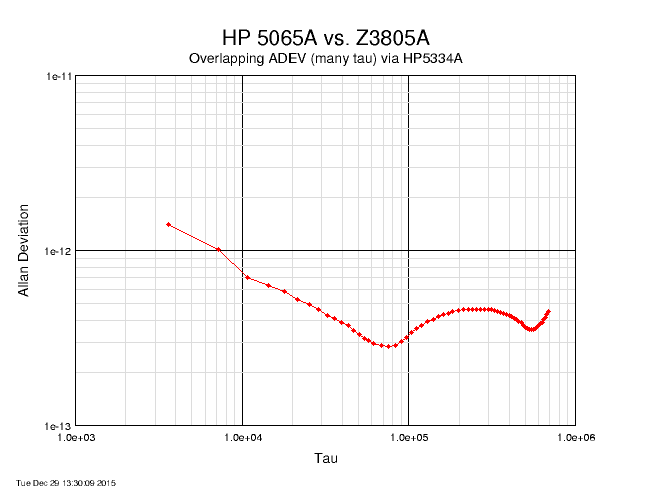

Overlapping Allan Deviation

Tau	ADEV		Tau	ADEV
3.60E+03	1.416E-12		5.76E+04	3.041E-13
7.20E+03	1.013E-12		1.15E+05	3.658E-13
1.44E+04	6.326E-13		2.30E+05	4.607E-13
2.88E+04	4.603E-13		4.61E+05	3.925E-13
