[time-nuts] HP10544a Technical Info needed

Dr Bruce Griffiths bruce.griffiths at xtra.co.nz
Fri Feb 2 23:54:45 EST 2007


Howard

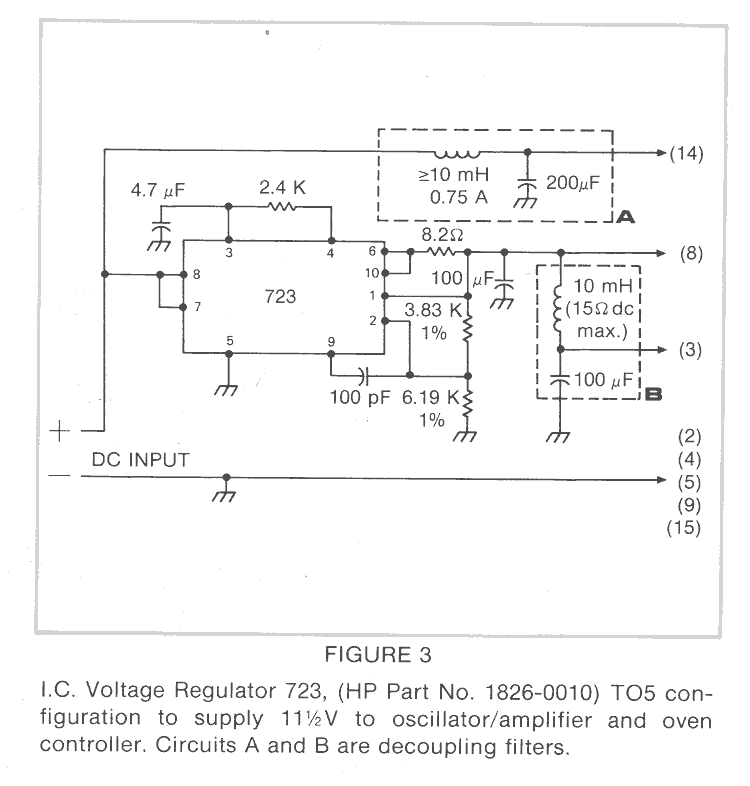

Attached GIf file depicts the recommended power supply filtering when
the oven circuit shares the same supply as the oscillator.

Bruce

-------------- next part --------------
A non-text attachment was scrubbed...
Name: 10544APSFiltb.gif
Type: image/gif
Size: 19278 bytes
Desc: not available
Url : http://www.febo.com/pipermail/time-nuts/attachments/20070203/f0917d5c/attachment-0001.gif
