Brian,

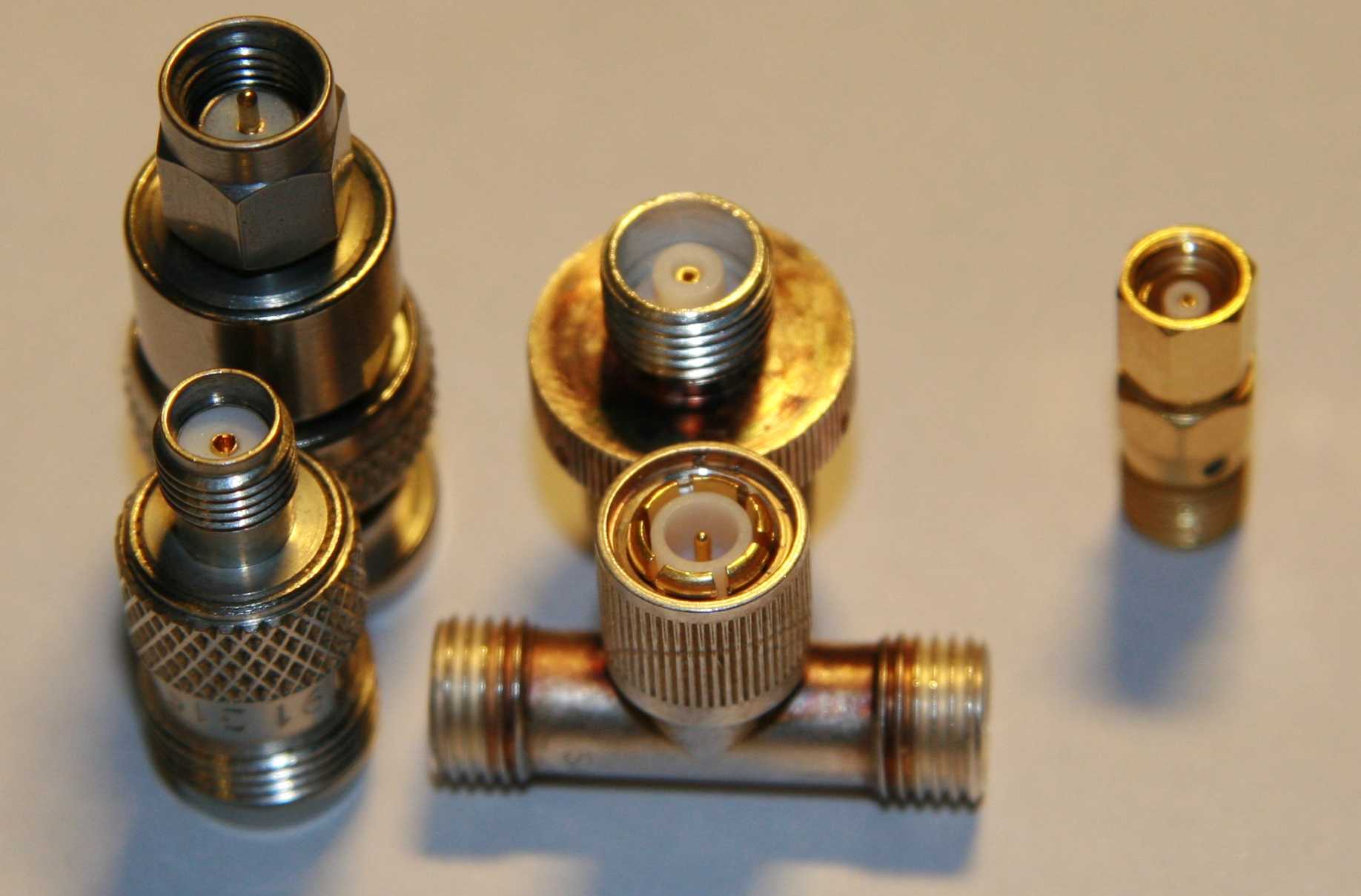

No its not an SMC. See attached photo.
>From the left,
male and female SMA, female and male unkown and to the right the smaller
male SMC.
--
Björn
On Wed, 2008-10-22 at 17:00 -0500, Brian Kirby wrote:
> It may be SMC now that I looked it up. A connector guide is attached....
>
>
> Björn Gabrielsson wrote:
> > Hi List,
> >
> > I have a coax connector that I would like to identify. Se attached
> > picture.
> >
> > To the left is a female TNC for reference. The unknown male is attached
> > to the cable. Unknown female to the upper left as part of a "T" adapter.
> >
> > It looks kind of a smaller version of TNC. It is slighly larger than
> > SMA. Female diameter is 5/16", whereas TNC is 7/16" and SMA is 4/16" -
> > according to my simple measurement.
> >
> > Anyone recognizing this connector?
> >
> > thanks,
> >
> > Björn
> >
> >
> > ------------------------------------------------------------------------
> >
> >
> > ------------------------------------------------------------------------
> >
