[time-nuts] Rubidium Performance: DDS noise effect on 10 MHz

[John Miles]

> In the current 5680A units, the 10 MHz output comes from the 60 MHz VCXO
> (divided by 6 in CPLD) and not direct from a DDS. If my architecture
> understanding is right, the DDS signal output is mixed with the VCXO
output
> only at the 114th harmonic of 60 MHz, and it's the PLL (looking at the
optical
> signal from the Rb) that drives the VCXO to keep it lined up.  As I
understand
> it, DDS phase noise should be divided by a factor of 6*114 by the time it
> appears at the 10 MHz output, and at larger frequency offsets the
amplitude
> should also be (significantly) reduced by the PLL loop filter.
>
> I don't have any phase noise measurement tools myself, so this is just an
> academic argument, but if there is significantly more noise on the 10 MHz
> than expected for a 60 MHz VCXO, I wonder if it's just inadequate
filtering of
> an internal power rail.  Is the unit under test being driven by a linear,
or
> switching supply?

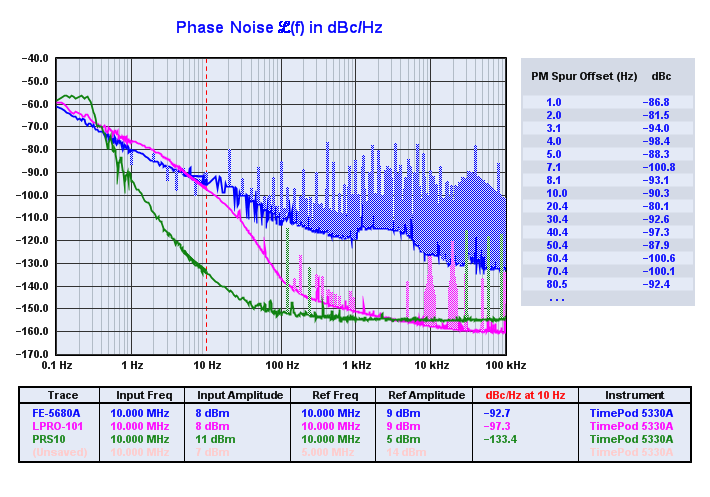

What made me suspect the AD9832 is that the PN/spur behavior is so close to
what I'd expect from it.  Analog Devices' own plots contain a lot of strong
spurs, and the chip's actual SFDR spec is in the -70 dBc range that I'm
seeing (blue trace attached).  But yes, you're right, it would make a lot
more sense to use the DDS as an offset generator for the control loop,
rather than as an output device.

I tried it with a couple of different supplies, linear and otherwise, and
the noise didn't change meaningfully.  Since it's so far out of line with
FEI's specs, I have to believe that I either got a couple of bad examples --
although they lock very quickly and look essentially unused inside -- or I
don't have the pinout right, and am using the wrong ground or something like
that.  Seems pretty unlikely that this is normal operation.   Let's see what
JohnA comes up with.

-- john

-------------- next part --------------
A non-text attachment was scrubbed...
Name: rb_pn.png
Type: image/png
Size: 54302 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20120204/01f547be/attachment-0001.png>
