[time-nuts] FW: Plugs on the FE 70E

[Mike Feher]

Dave -

Like I said, I knew it was "triaxial", but I just have never seen this
configuration. I am sure there are a lot of other things I have yet to see.
Regardless, like I said, this looks like it is going to be a project of
changing out all of the connectors. Attached are a couple of quickly taken

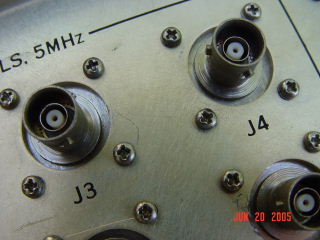

photos, reduced in resolution for quick access. One shows part of the rear

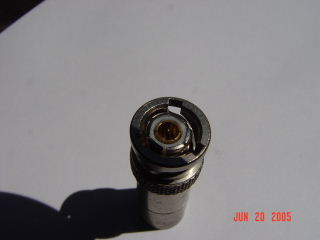

of the distribution amp whit the female sockets and the other the male end
of a terminating connector that came with the set. Seems everything I get on
ebay turns into a project. I have seen isolated BNCs before, like on
Tektronix scopes, but these are new to me. But who knows, if I look hard
enough in the basement I just may find a bunch of mating sockets. Thanks for
the help. Regards - Mike


Mike B. Feher, N4FS
89 Arnold Blvd.
Howell, NJ, 07731
732-886-5960



-----Original Message-----
From: Dr. David Kirkby [mailto:drkirkby at medphys.ucl.ac.uk]
Sent: Monday, June 20, 2005 11:17 AM
To: Mike Feher
Subject: Re: Plugs on the FE 70E

A couple like me suggested trixial. It will be no confort to you to know
that I threw about 50m of
that out less than 3 months ago. We must have bought a reel at work for
something, and when we moved,
it was thrown, thinking it would never be used again.

I might be able to find the odd plug if you need it.

Mike Feher wrote:
> Dave -
>
> Good idea - I was thinking of doing that at some point anyway, but,
thought
> someone may know them right away. Thanks - Mike
>
>
> Mike B. Feher, N4FS
> 89 Arnold Blvd.
> Howell, NJ, 07731
> 732-886-5960
>
>
>
> -----Original Message-----
> From: Dr. David Kirkby [mailto:drkirkby at medphys.ucl.ac.uk]
> Sent: Monday, June 20, 2005 10:39 AM
> To: mfeher at eozinc.com
> Subject: Plugs on the FE 70E
>
> Could you not post a picture - someone might reconise them.



--
Dr. David Kirkby PhD CEng MIEE,
Senior Research Fellow,
Department of Medical Physics,
Mallet Place Engineering Building,
Gower St,
University College London,
London WC1E 6BT.
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Cnv0005.jpg
Type: image/jpeg
Size: 22370 bytes
Desc: not available
Url : http://www.febo.com/pipermail/time-nuts/attachments/20050620/288788a1/attachment-0008.jpg
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Cnv0006.jpg
Type: image/jpeg
Size: 9910 bytes
Desc: not available
Url : http://www.febo.com/pipermail/time-nuts/attachments/20050620/288788a1/attachment-0009.jpg
