John Ackermann N8UR said the following on 08/26/2006 07:35 AM:
> SAIDJACK at aol.com said the following on 08/25/2006 10:23 PM:
>
>>Hi Didier,
>>
>>I tried this with a Maxim video amp, and my 10MHz noise floor went from
>>-155dBc/Hz on the input to about 80-90dBc/Hz on the output of the amp.
>>
>>80dBc is great for Video (generally arund 50dB SNR), but for timing it's a
>>catastrophe...
>
>
> That's interesting.  The MAX477 video amp that is used in the TADD-1
> (http://www.tapr.org/kits_tadd-1.html) does a lot better than that.

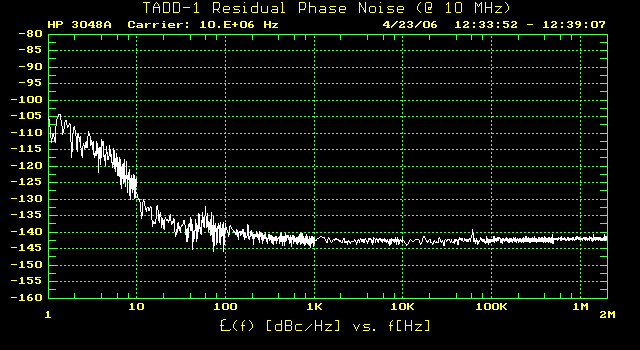

> Here is a phase noise plot of the TADD-1 at 10MHz; it is better than
> -105dBc at 1Hz and reaches a noise floor of -142dBc at less than 100Hz.
>
> John
>
