[time-nuts] Thunderbolt - temperature

Peter Vince pvince at theiet.org
Fri Jul 18 13:22:09 EDT 2008

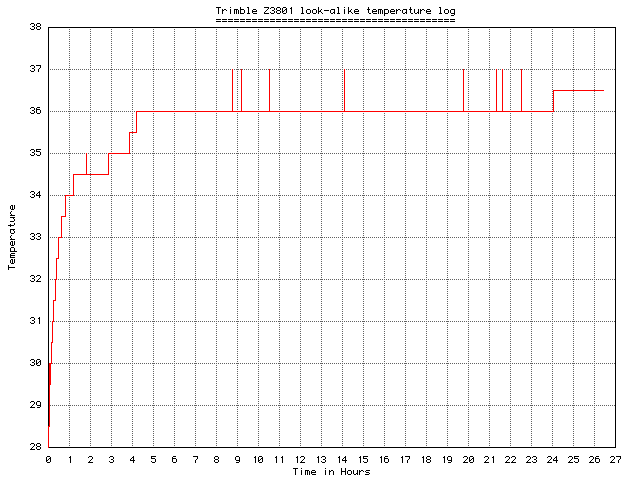

I have one of the Trimble Z3801 look-alikes.  It only seems to report
its temperature in half-degree steps, but I left it running for
nearly 27 hours, and saw a couple of 1-second 1 degree spikes during
that time - see attached graph.  Could this be the same thing you are
seeing with your real Thunderbolts?  There is no 20-second decay that
you are seeing, but then the resolution is very coarse.

The item has several part numbers on its label:

P/N: NTPX26AB-01	D/C: 9828
P/N: 34304-00 -11	Oscillator "T"

(barcode)	NNTM74TR0081

and has a small label under the barcode with 1.56 on it - firmware version?


	Peter Vince  (G8ZZR, London, England)
-------------- next part --------------
A non-text attachment was scrubbed...
Name: trimble_temperature.gif
Type: image/gif
Size: 8176 bytes
Desc: not available
Url : http://www.febo.com/pipermail/time-nuts/attachments/20080718/c00215e6/attachment.gif
