[time-nuts] CTS oscillator info?

Rex rexa at sonic.net
Tue Apr 7 21:32:15 UTC 2009

Rex wrote:
> A list member sent me a brief CTS datasheet. Looks like the oscillator
> is probably a version of JKSC-142. The info is brief and does not
> mention noise but the main feature is long term and temperature
> stability. STABILITY: +/-1x10^-7 for 20 yrs without any adjustment.
> I can't guess why Lucent would want them 55 Hz above 5 MHz unless it was
> some kind of measurement application, but I don't know much about
> telephone stuff.
> -Rex

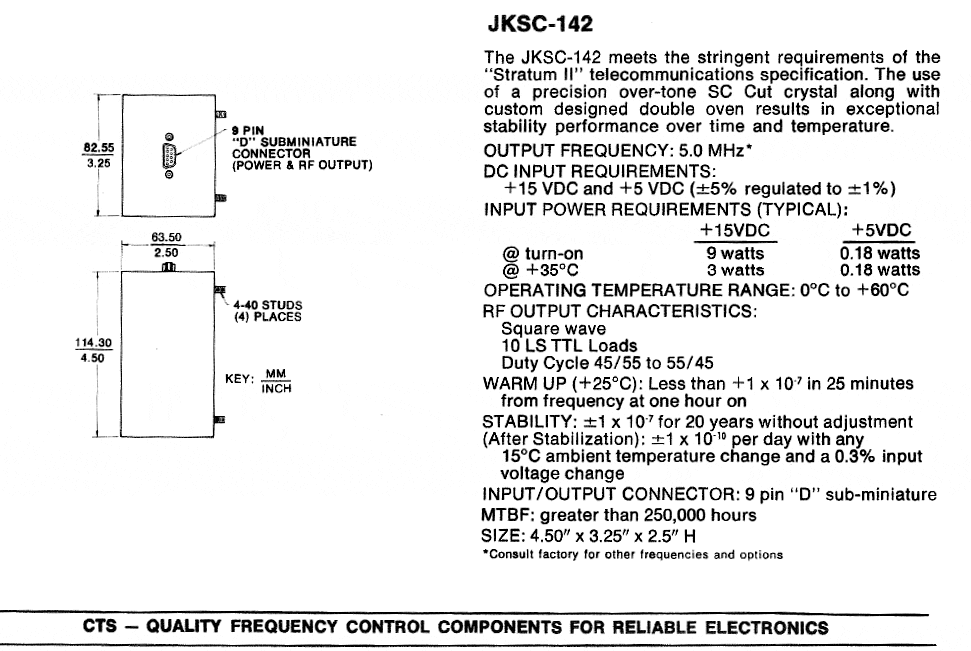

I think small attachments are ok. I cut out and shrunk the portion of
the datasheet that seems to apply to this oscillator.

Attached as a gif file.

-------------- next part --------------
A non-text attachment was scrubbed...
Name: jksc-142.gif
Type: image/gif
Size: 81999 bytes
Desc: not available
Url : http://www.febo.com/pipermail/time-nuts/attachments/20090407/b78b57c4/attachment-0001.gif
