Statements about the low flicker noise of these mixers are sprinkled
throughout the phase noise literature.
Someone must have measured the phase noise of these and other mixers at
some time.

Its relatively easy to measure mixer phase noise:
All one needs is a low noise preamp plus a sound card a 90 degree hybrid
(or a suitable length of coax and a splitter) and a low noise source.

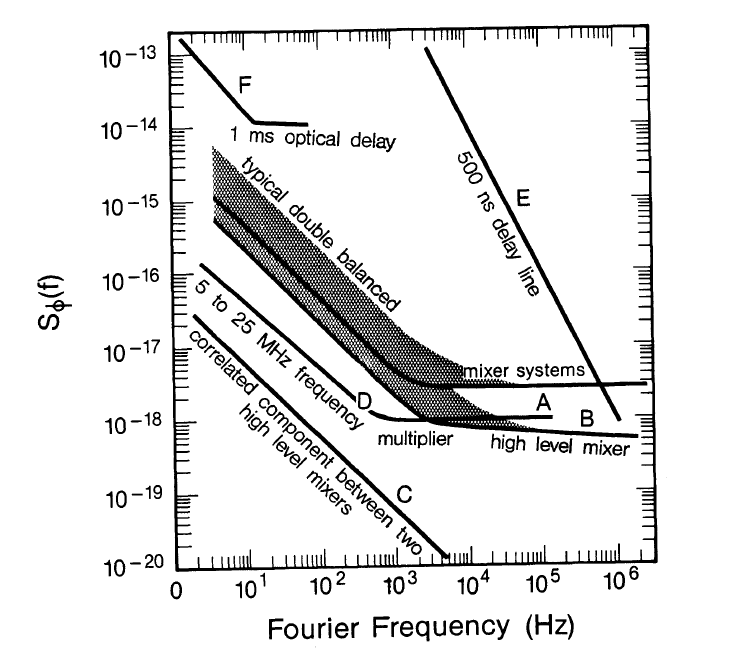

However NIST papers often include a phase noise plot (attached) that
illustrates that high level mixers can have a significantly lower phase
noise than low level mixers (like the HP10514A).
When choosing a mixer for this for phase noise measurement applications
one may actually need to measure the phase noise characteristics of
candidate mixers.
