[time-nuts] Curve fitting

Mark Sims holrum at hotmail.com
Wed Dec 23 22:46:38 UTC 2009


Here are a couple of images of what can be done with a cardboard box,  a small fan,  and a DC solid state relay (or transistor)...

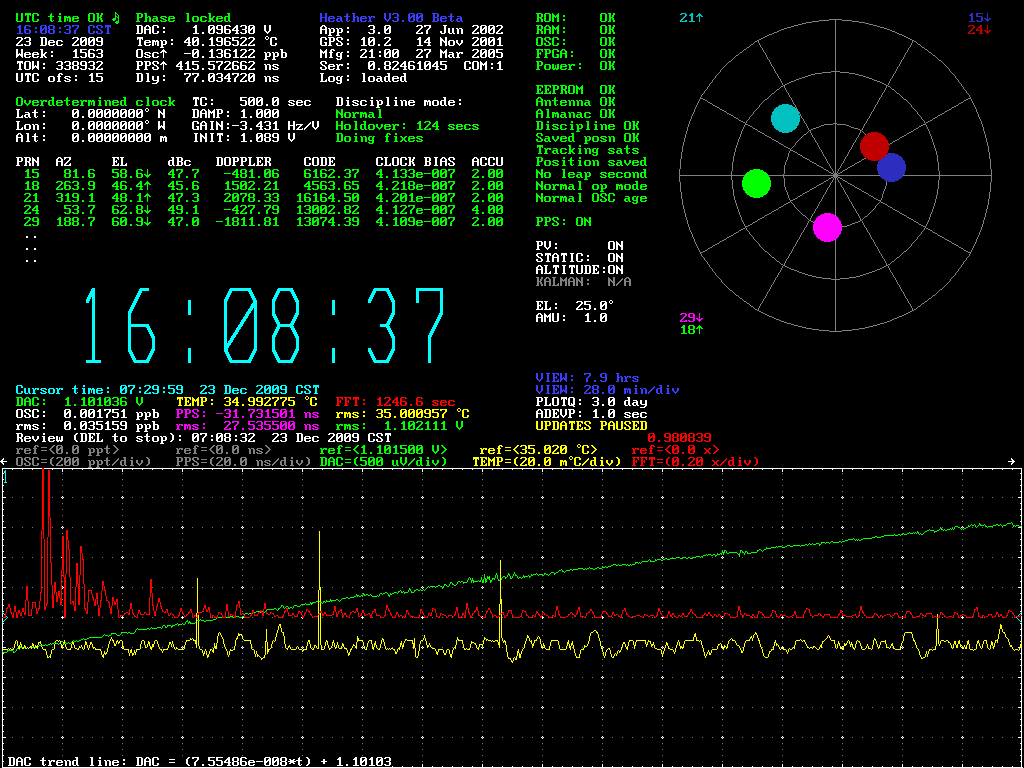

The first is of the DAC voltage over 8 hours with the temperature stabilized (note with an RMS error of under .001C over 8 hours...  much of which is due to those false temperature sensor spikes).

The temp controller PID parameters were not tuned for the box/fan configuration.  With optimized values and no furnace to contend with,  I have seen rms errors in the low tens of microdegrees over 8 hours...

It also shows the FFT of the temperature data over that time...  some temp control wobbles around 1200-1400 seconds due to furnace cycling).

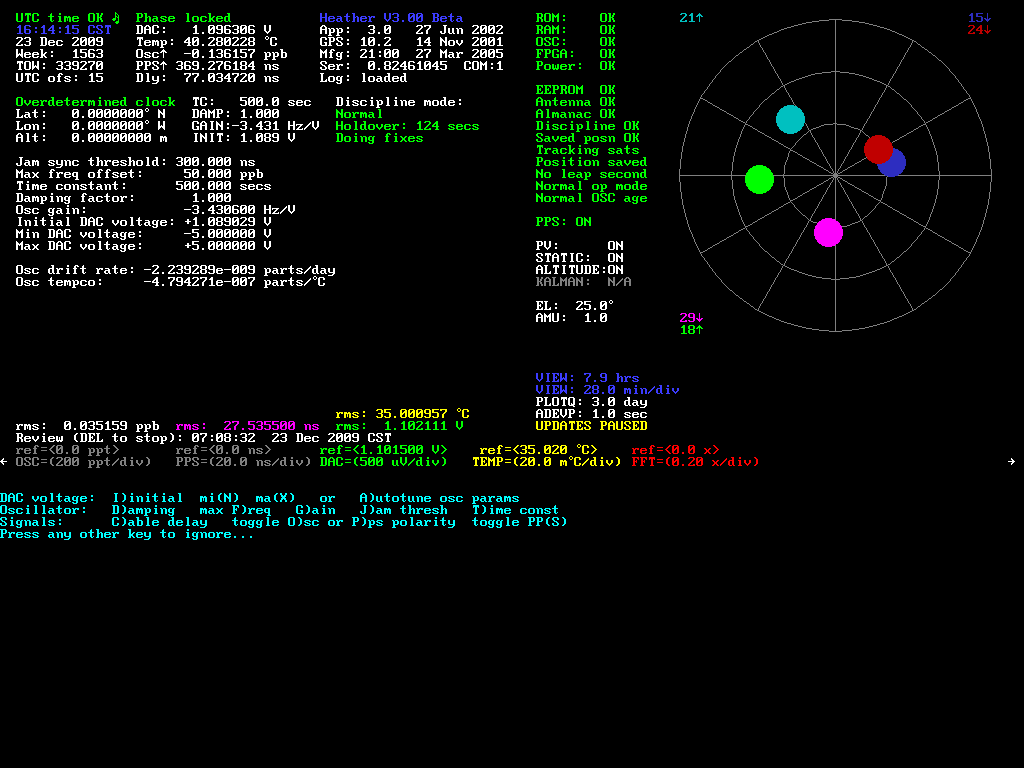

The second image shows the calculated oscillator drift at -2.239E-9 parts/day.  The osc tempco number is rather bogus since it needs to be calculated when the temp is moving a lot more.
