[time-nuts] 10811 crystal orientation

Chad Simpson analogaficionado at gmail.com
Wed Jul 8 17:43:14 UTC 2009


Hi Antonio,

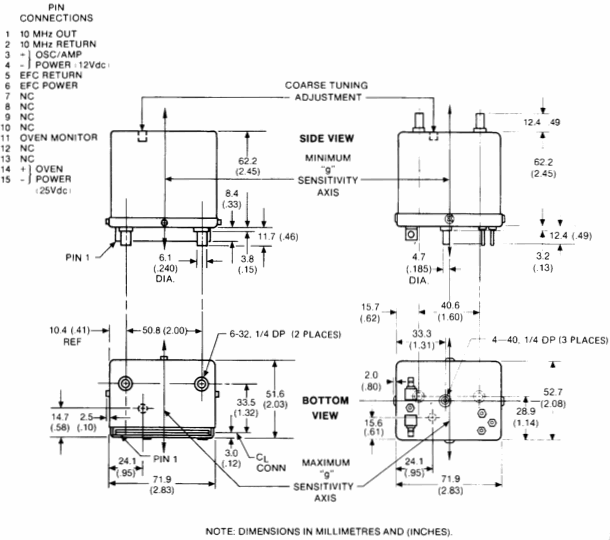

Please see the attached diagram from the 10811A service manual.  Minimum and
maximum G-sensitivity axes are shown.  Since the other variants of 10811 are
all internally constructed the same, I would not expect a difference for the
-60111.

- Chad.



On Wed, Jul 8, 2009 at 10:27 AM, iovane at inwind.it <iovane at inwind.it> wrote:

> Dear all,
>
> does anybody out there know the orientation of the crystal faces relative
> to the outer case in a 10811-60111?
>
> (The sense of the question is that we are considering building a 3-axis
> apparatus for gravity-related tests. Note, based on our tentative
> modelization, crystals are not requested to work as accelerometers).
>
> Antonio I8IOV
>
>
> _______________________________________________
> time-nuts mailing list -- time-nuts at febo.com
> To unsubscribe, go to
> https://www.febo.com/cgi-bin/mailman/listinfo/time-nuts
> and follow the instructions there.
>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: 10811A Dimensions.gif
Type: image/gif
Size: 44031 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20090708/9398dcbf/attachment-0001.gif>
