[time-nuts] Thunderbolt performance vs temperature sensor

[Mark Sims]

Hello Said,

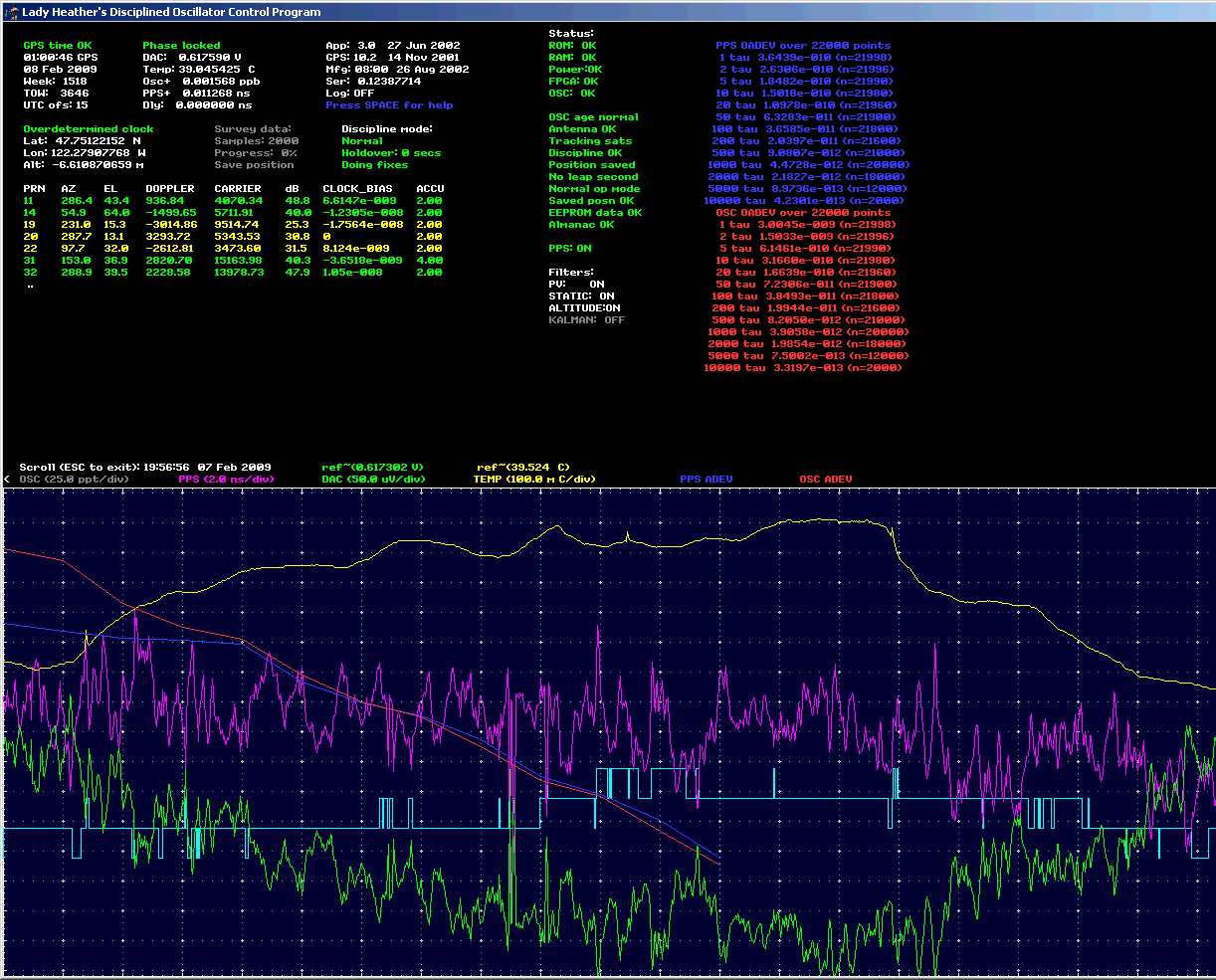

Attached is a screen dump of a run that John Miles did.  You can see that the envelope of the DAC voltage follows the temperature curve (inversely).   On a finer scale the DAC voltage follows the PPS error.  This plot was done with the unit locked to GPS.  I believe the time scale is 10 secs/pixel (1 hr per major horizontal division).

----------------------------------------
