[time-nuts] Solatrtron 7151 DMM
Jan Fredriksson
jan at 41hz.com
Sat Nov 28 18:02:30 UTC 2009
Some time ago someone posted about these DMMs and power
filter problems. I had similar problems with one.
It was caused by a short by components touching the
grounding / shielding in the inside of the top lid which is
earth grounded.
The upper PCB was a bit out of position. I de-powerd it
quite quickly so it was not badly damaged, but the smell
from the input filer was so bad I had to get rid of the DMM!
Luckily I have another 7151 :-)
I have a VB6 app fore it for simple datalogging if someone
is interested, I can send it.
Jan
From: time-nuts-request at febo.com
Subject: time-nuts Digest, Vol 64, Issue 95
To: time-nuts at febo.com
Send reply to: time-nuts at febo.com
Date sent: Sat, 28 Nov 2009 15:42:05 +0000
> Send time-nuts mailing list submissions to
> time-nuts at febo.com
>
> To subscribe or unsubscribe via the World Wide Web, visit
> https://www.febo.com/cgi-bin/mailman/listinfo/time-nuts
> or, via email, send a message with subject or body 'help' to
> time-nuts-request at febo.com
>
> You can reach the person managing the list at
> time-nuts-owner at febo.com
>
> When replying, please edit your Subject line so it is more specific
> than "Re: Contents of time-nuts digest..."
>
>
> Today's Topics:
>
> 1. Time illiterate query about feasibility of determining source
> clock quality based on NTP jitter/disp and offset (Saku Ytti)
> 2. Santa's Visit #1 (Stan, W1LE)
> 3. Re: Double oven ocxo's was Tbolt reception problems
> (SAIDJACK at aol.com)
>
>
> ----------------------------------------------------------------------
>
> Message: 1
> Date: Sat, 28 Nov 2009 15:27:35 +0200
> From: Saku Ytti <saku at ytti.fi>
> Subject: [time-nuts] Time illiterate query about feasibility of
> determining source clock quality based on NTP jitter/disp and offset
> To: time-nuts at febo.com
> Message-ID:
> <831084990911280527u317e8af7qbce051f07f78b340 at mail.gmail.com>
> Content-Type: text/plain; charset=UTF-8
>
> cisco#show ntp associations
>
> address ref clock st when poll reach
> delay offset disp
> *~meinberg-dhq .PPS. 1 13 256 377 2.6
> 1.53 3.7
> +~meinberg-lq .PPS. 1 131 256 377 2.1
> 1.83 1.4
> +~randomPC1 .GPS. 1 29 256 377 17.0
> 1.35 0.3
> +~randomPC2 randomPC3 2 45 256 377 17.6 1.17 0.3
> +~randomPC3 .GPS. 1 41 256 377 17.0
> 1.52 0.4
> * master (synced), # master (unsynced), + selected, - candidate, ~ configured
>
>
> I see similar result all around, meinbergs which are lot closer, have
> poorer offset
> and disp.
> Are there any conclusions I can draw from this?
>
> Funny thing is that cisco iscloser to randomPC2 than its source random PC3,
> so I think just based on that, I can determine I can't use these values to
> determine quality of source clock?
>
> But what would then explain how disp/jitter and offset are consistently better
> towards the randomPC's which are considerably further down the network?
>
> With basically no clue about time, I have two uneducated guesses.
>
> 1) meinberg is embedded hardware, software processing is slow in it
> compared to randomPC which runs software much faster, which is
> much more visible in NTP than actual clock quality
>
> or
>
> 2) cisco and randomPC have similar clock hardware, something bulk
> most hardware use, these clocks skew to same direction at relatively
> similar rate, making the cisco and randomPC's having time quite close
> to each other, both being bit further away from better clock.
>
> Thanks,
> --
> ++ytti
>
>
>
> ------------------------------
>
> Message: 2
> Date: Sat, 28 Nov 2009 10:36:52 -0500
> From: "Stan, W1LE" <stanw1le at verizon.net>
> Subject: [time-nuts] Santa's Visit #1
> To: time-nuts at febo.com
> Message-ID: <4B114394.5080609 at verizon.net>
> Content-Type: text/plain; charset=ISO-8859-1; format=flowed
>
> Hello The Net:
>
> Execess to my needs is a older National Instruments
> GPIB adapter card with what looks to be a 8 bit ISA interface to your PC.
>
> On the PCB is assy180340-01 rev a, not obvious to me what the NI model
> number is.
> I suspect drivers are still available from NI.
>
> First response direct to me (off of this reflector) can have it for my
> cost of packing and mailing.
> Paypal would be convenient for me. Local pickup within 1 week is OK.
>
> I have not had a PC with a ISA expansion interface in a few computer
> generations,
> so I can not use it, as I try to put some of my HP equipment on a network.
>
> Any interest, please advise.
>
> Santa, W1LE Cape Cod FN41sr
>
>
>
>
> ZZZZz
>
>
>
> ------------------------------
>
> Message: 3
> Date: Sat, 28 Nov 2009 10:41:38 EST
> From: SAIDJACK at aol.com
> Subject: Re: [time-nuts] Double oven ocxo's was Tbolt reception
> problems
> To: time-nuts at febo.com
> Message-ID: <ce3.5e1939e7.38429eb2 at aol.com>
> Content-Type: text/plain; charset="us-ascii"
>
> Hi guys,
>
> it turns out I achieve the best results with an E1938A driven by a Fury
> board, compared to my PRS-10 Rb. I have not tried a Fury GPSDO with a
> standard DOCXO yet, but suspect similar results - that test to follow next week.
>

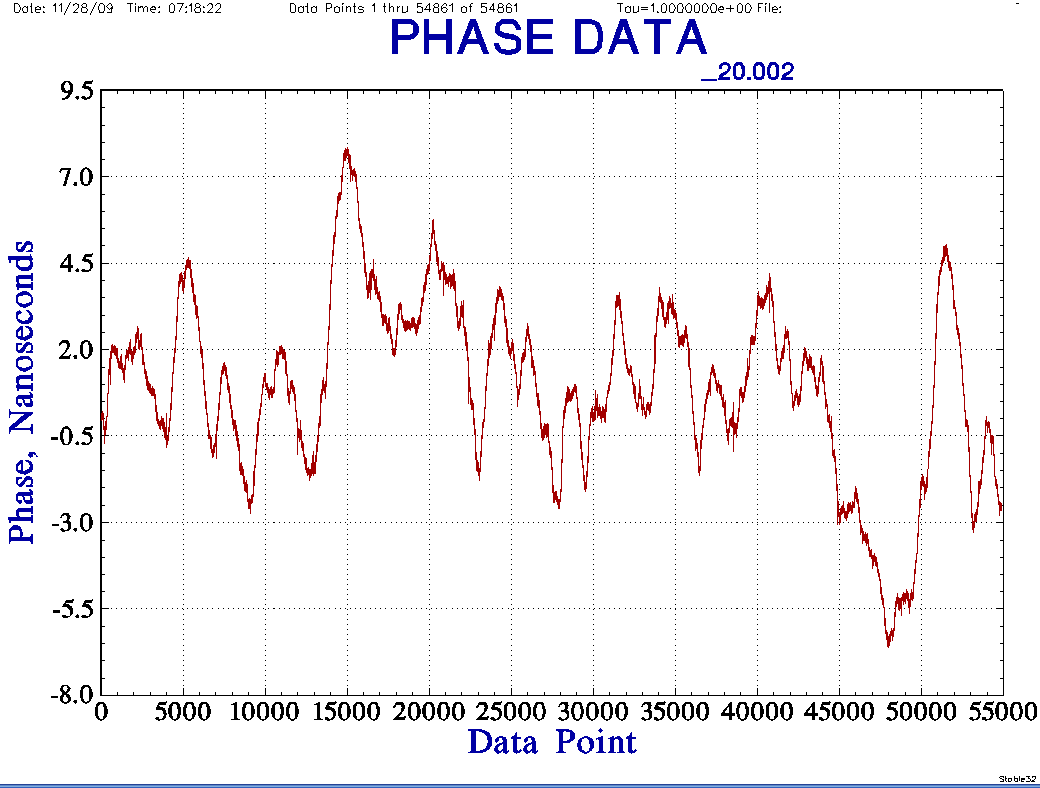

> The standard deviation over 15 hours is about 2.3ns, the range less than
> +/-8ns. Please see the attached plot. The E1938A has only been turned on
> less than 2 days after a very long power-off period (4+ months), but it is
> already very stable.
>
> Next step is to see which of the two is better, after that how much STS
> improvement can be gained by removing the GPS disciplining.
>
> bye,
> Said
>
>
> In a message dated 11/25/2009 17:20:40 Pacific Standard Time,
> richard at karlquist.com writes:
>
> We demonstrated thermal gains of over 1 million in the E1938A
> single oven oscillator. You don't need a double oven.
>
> Rick Karlquist N6RK
>
>
>
> -------------- next part --------------
> A non-text attachment was scrubbed...
> Name: E1938A_PRS10.gif
> Type: image/gif
> Size: 22684 bytes
> Desc: not available
> URL: <http://www.febo.com/pipermail/time-nuts/attachments/20091128/118c72fa/attachment.gif>
>
> ------------------------------
>
> _______________________________________________
> time-nuts mailing list
> time-nuts at febo.com
> https://www.febo.com/cgi-bin/mailman/listinfo/time-nuts
>
> End of time-nuts Digest, Vol 64, Issue 95
> *****************************************
>
--
Jan Fredriksson
