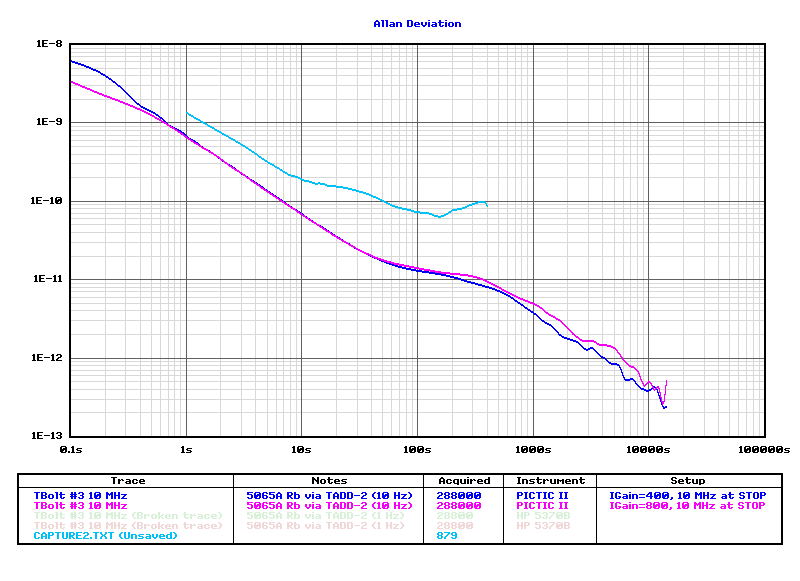

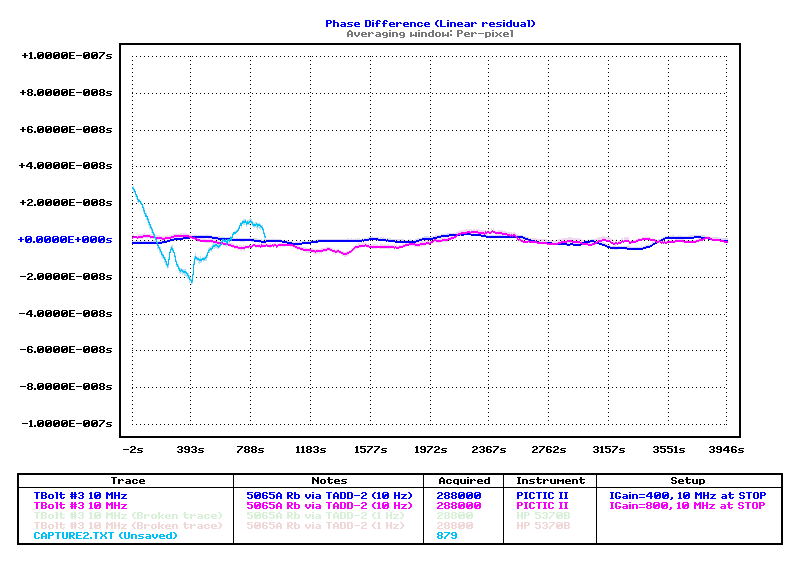

I imported your .txt file alongside the traces I captured.  Assuming it was
taken with 1 Hz on both START and STOP, it looks like the attached.

You're getting the exact sort of results that I see if I feed both the START
and STOP inputs at 1 Hz.  My guess is that the onboard oscillator limits the
performance in that case, since it has a lot of time to drift during the
measurement if the two pulses occur close to 1 second apart.  Even the 5370B
looks much worse if driven with 1 Hz on both inputs than it does with 1 Hz
at START and 10 MHz at STOP.

So I think you're basically up and running OK.  When I get around to trying
a better clock, I'll also go back and see if the 1-pps x2 performance
improves.

It would be great if the next spin of the board could include sine-to-CMOS
shapers for the input channels as well as an external clock input, for
people who are working directly with RF signals as opposed to 1-pps.

-- john, KE5FX
