[time-nuts] AVAR calculation

Bruce Griffiths bruce.griffiths at xtra.co.nz
Sun Jan 10 21:51:55 UTC 2010


Filip Ozimek wrote:
> I'm trying to calculate AVAR from collected data, but I would expect a different behavior of my DUT. Does anybody can calculate the AVAR for me?
> Gate time was 1s, without any deadtime between measurements,
> this is a file http://www.fuw.edu.pl/~fozimek/pomiar61-frep.txt
> with collected data.
>
> Thanks,
>
> Filip Ozimek
>
>
>
Filip

If you have a windows machine download Ulrich's plotter program and use
it to analyse the data.
http://ulrich-bangert.de/html/downloads.html
Otherwise you should be able to run it either in a virtual machine or
under wine with Linux, FreeBSD etc.

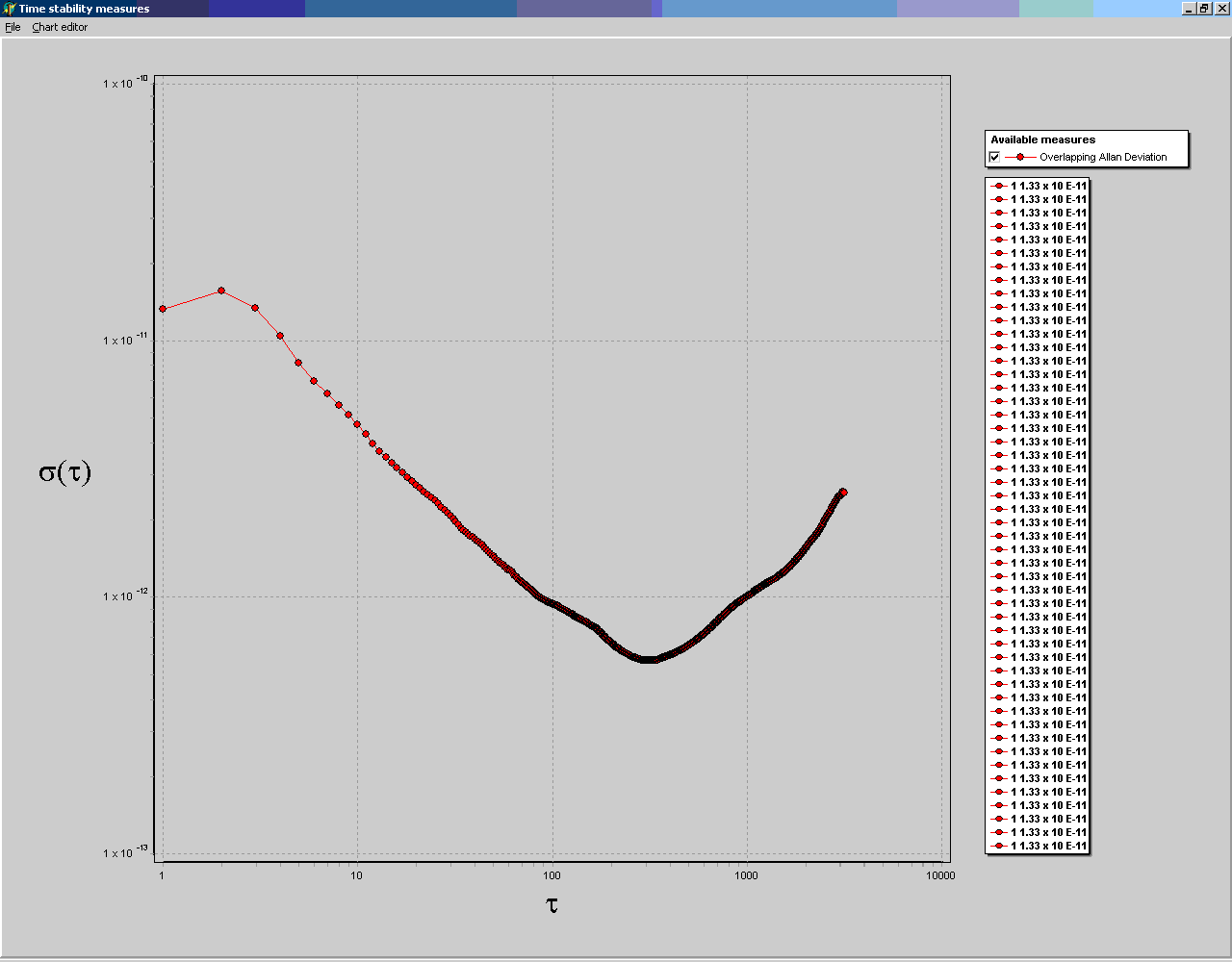

If the input data is frequency one will get a plot something like that
attached.


Bruce
-------------- next part --------------
A non-text attachment was scrubbed...
Name: AVAR_1.gif
Type: image/gif
Size: 26152 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20100111/7dab3c92/attachment-0001.gif>
