No, the ebay item 180460919851 looks correct, data sheet for 74ac175 has the
same pin out for all packages.

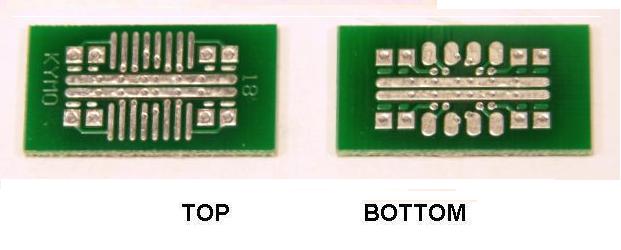

Attached a picture pin 1 to pin 1 no crossed pins.

Stanley



----- Original Message ----
From: Hal Murray <hmurray at megapathdsl.net>
To: Discussion of precise time and frequency measurement <time-nuts at febo.com>
Sent: Fri, July 9, 2010 11:09:18 PM
Subject: Re: [time-nuts] PICTIC II Parts - SOIC to PDIP Adaptor


stanley_reynolds at yahoo.com said:
> The ebay item will fit the .3 inch spacing of the pcb.

Check the pinout.  It's turned sideways.


--
