I agree with Magnus Dual Mixer is the best way to go. That is why over a
year ago I set out to develop a system that with counter can be realized for
$200. I did reach that goal and Corby tested the first pass and the second
pass with 1 E-13 results. He used his SRS counter. Richard who wrote the
code for the five PIC's has tested the counter. What is missing some one
testing the two combined. I have a total of seven systems out there some on the
condition that they get on it with in two weeks. Sad to say it has not
happened. I just send out an other kit this week, maybe we will have more luck
this time. Once a total test has been done the third set of boards will be
ordered and once tested made available for any one. It measures frequency
difference and Allan Variance with a resolution 1E-15 the five channel
counter runs off USB power and all is needed is along with the reference is a
one or ten Hz offset OCXO.
I will not mention any names but I would like to remind you what you
promised the rest would appreciate the availability of a unit that everybody can
build and will be affordable.

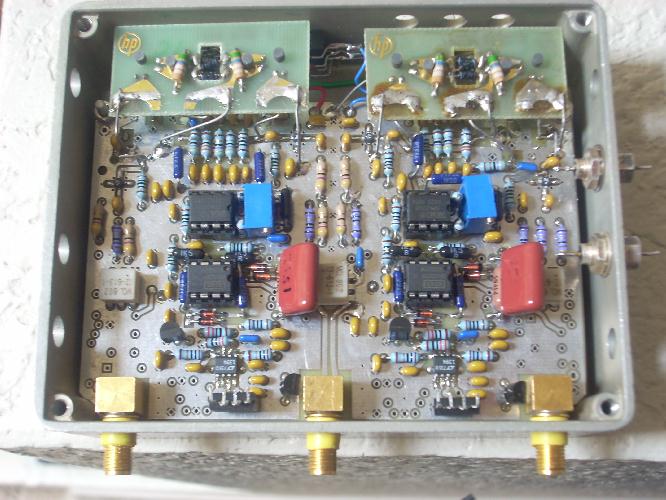

Attached is the picture of the second pass with HP 10514 Mixer courtesy of
Corby. There are only two SMD components!
