[time-nuts] Active LORAN antenna

Stan, W1LE stanw1le at verizon.net
Fri Aug 26 13:02:02 UTC 2011


Hello UL,

My SRS active antenna is internally potted in resin, so tracing the
circuit is difficult.

I was able to chip away the PVC white housing and some of the black potting
material to get at the antenna input terminal. Then I repackaged it with
a new CB antenna.
Living on Cape Cod, quite near to the former Nantucket Loran station, I
can only rarely receive
some of the European stations.

The schematic in the manual shows a switch or a jumper for the gain
reduction.
So, the schematic is probably an old version, and "all bets are off" as
to what
the production models, we have, consist of.

I did buy the manual form SRS and the active antenna schematic shows a
2N5951,
not the 2N5991 you mention. My schematic is a rev B, Document Number
FS700-14
This document in not dated.

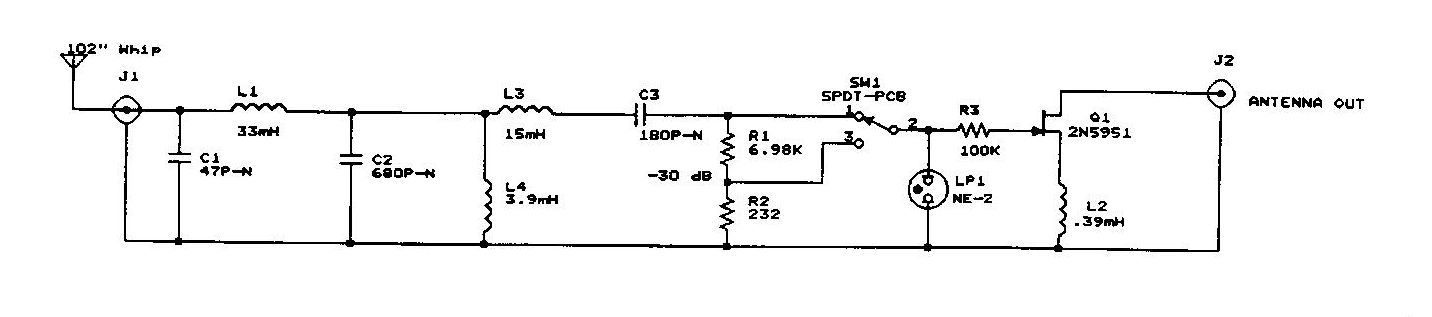

The frequency selective L-C filter network is different, see attachment.

If the attachment does not get thru, please send your direct e-mail address.


Stan, W1LE     Cape Cod    FN41sr




On 8/26/2011 6:00 AM, Ulrich Bangert wrote:
> Gentlemen,
>
> my friend Frank and I both miss the matching actice antenna for our
> Standford Research FS700 Loran frequency standards. We also do not have a
> schematic of it. Nevertheless we have tried to re-engineer the circut from
> the part's list and the circuit description in the FS700 manual. Our result
> is shown in the accompanying schematic.pdf.
>
> The generator in the left in conjunction with the 10 k resistor represents
> the expected high footpoint impedance of the very short (3 m) antenna. The
> VDD in the right in conjunction with the 100 ohms resistor represents what
> it believed to be inside the FS700.
>
> Not shown here is a 100 k resistor that may be included between the filter
> output and the 7 k resistor to form a 30 dB divider together with it. Also
> not shown is a 390 micro henry inductance which's impact is not to be found
> in the circuit descripion. Also not shown is a small neon bulb for
> overvoltage protection.
>
> The ac analysis shows that the overall filter function is well around 100
> kHz. But it seems as if the fet (a 2N5991 in the original) would not have
> enough gain to counteract the overall damping included in the front end let
> alone to deliver some additional gain for the receiver's front end.
>
> We both feed the receiver currently with dipoles for 80 m ham radio and a
> resistor that makes the receiver think the active antenna is connected. The
> receiver has a possible total of 130 dB gain and my receiver says it uses 94
> dB gain while Franks receiver says it uses 102 dB gain. The noise margin is
> also a bit better on my location. However, if one looks at the manual f.e.
> at page 17 one could get the impression as if a receiver gain of 75 dB may
> be considered much more normal as our values. Instead of improving the
> reception everything gets even worse if the active antenna is connected. I
> should also note that my qth is only 200 km away from SYLT (our German Loran
> station) while Frank is even 70 km nearer to it.
>
> Questions:
>
> 1) Anyone an idea what we are possibly doing wrong?
>
> 2) Anyone an idea for the 390 micro henry inductor?
>
> 3) Anyone own the original schematic?
>
> TIA for your help
>
> Ulrich Bangert
> www.ulrich-bangert.de
> Ortholzer Weg 1
> 27243 Gross Ippener
>
>
