[time-nuts] Fwd: Re: Using a Racal 1992
Chuck Forsberg WA7KGX N2469R
caf at omen.com
Tue Dec 13 17:12:06 UTC 2011

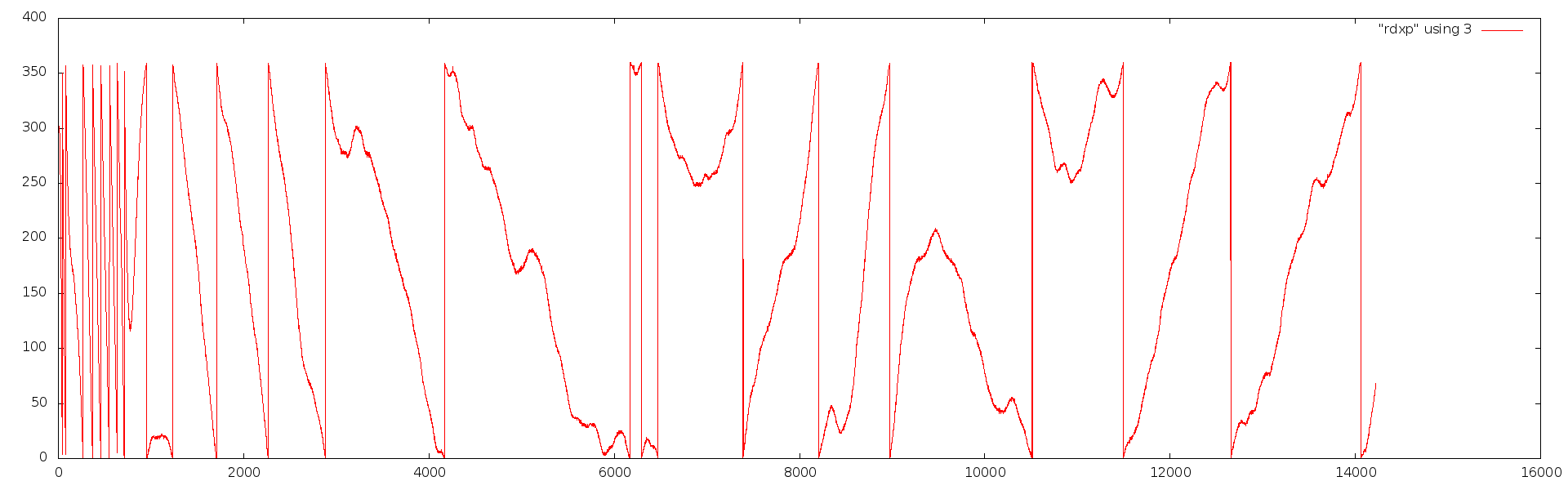

Here is a plot from the latest GPIB hack which reads frequency and phase
about once per second. Only the phase is shown here. Small tweeks to the
fine freq standard adjustment take several minutes to take effect. Is
the fine adjustment tweeking some parameter related to the oven??? On
12/11/2011 07:34 AM, Larry McDavid wrote: > Chuck, what is the time
scale in your plot? That is, why does "1400" = > 430 seconds? > > Larry
> > > On 12/10/2011 10:35 PM, Chuck Forsberg WA7KGX N2469R wrote: >>
The 1992's A input goes to the Thunderbolt. >> The 1992's B input goes
to its time base output. >> The counter is set to "A rel B" >> >> Here's
a blow-up of the phase plot. In this case it takes some 430 >> seconds
for the >> phase offset to cycle 360 degrees. In other words, there is
1/430 Hz >> frequency difference. > ... > -- Chuck Forsberg WA7KGX
N2469R caf at omen.com www.omen.com Developer of Industrial ZMODEM(Tm) for
Embedded Applications Omen Technology Inc "The High Reliability
Software" 10255 NW Old Cornelius Pass Portland OR 97231 503-614-0430
-------------- next part --------------
A non-text attachment was scrubbed...
Name: phase3.gif
Type: image/gif
Size: 31948 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20111213/95bd2cb3/attachment-0001.gif>
-------------- next part --------------
An embedded and charset-unspecified text was scrubbed...
Name: rdxp.c
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20111213/95bd2cb3/attachment-0001.c>
