> is there any chance that the 26dB gain of that antenna and its preamp will cause the TBolt pain?

The same setup works good for me and LadyHeather shows about 2ns RMS of phase noise.
A little better if the gain was up about 6 dB, due to my 5.5 db cable loss using 50 ft of 75 ohm RG-6.

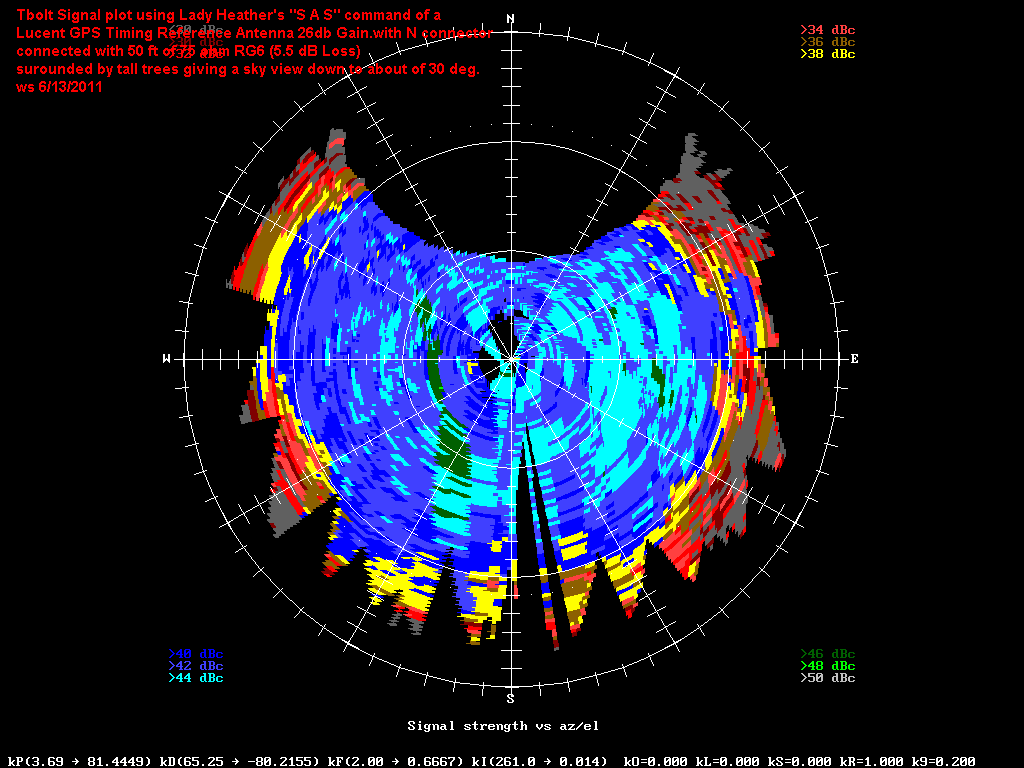

see attached LH signal plot. The best antenna setups will show a little "white" >50 dBc in the LH's "S A S" signal plot.

Has anyone TESTED the results of mounting a pie pan ground plane under one of these antennas when used with a Tbolt?

ws

**********************

[time-nuts] low-loss cable
Dick Moore richiem at hughes.net

Once again, thanks to all. The Lucent bullet antenna has an N connector on the base, so I'll just use RG-6 which I have enough of, and live with a bigger trough through the window frame or just go ahead and bore through the wall -- I originally cut the slit in the window frame to accommodate the Hawk patch antenna's permanently attached very small diameter cable and I didn't want to mess with removing and installing the BNC connector on the other end on that tiny stuff in order to take it through the wall. But with RG-6 or RG-59, no such problem.

Now, question 2: fluke.l says that the Lucent bullet will work fine with the TBolt -- but is there any chance that the 26dB gain of that antenna and its preamp will cause the TBolt pain?

Best,
Dick
-------------- next part --------------
A non-text attachment was scrubbed...
Name: tbolt.gif
Type: image/gif
Size: 45427 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20110613/ca105774/attachment-0001.gif>
