[time-nuts] Close in frequency stability
Loïc MOREAU
Loic.MOREAU at eai.fr
Mon Nov 7 08:52:09 UTC 2011
Hi,

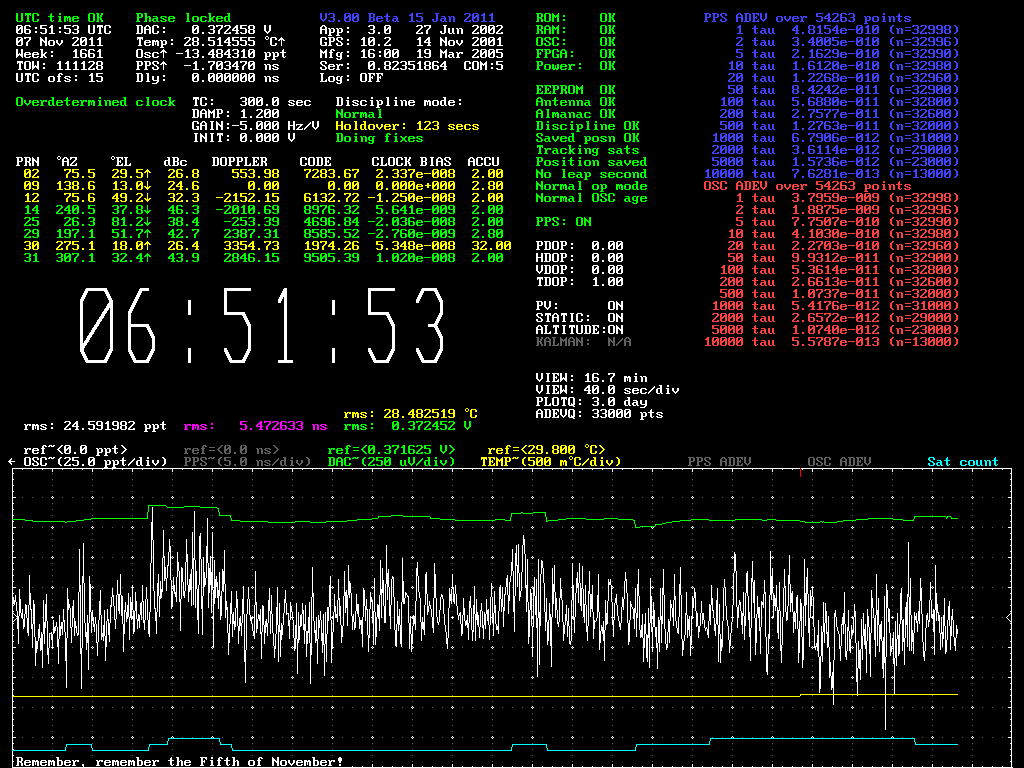

Here attached is a TBOLT screen shot,
I am unable to go an ADEV @ 1s not better than 10-8 with timelab when I am measuring a 10-134 10 MHz source, I suppose that it is due to the short term stability of my TBOLT around 20 ppt rms with spikes coming up to 80 ppt .
Putting directly the output of my external 10MHz ref in the input of my 53132A counter give some variation of the 11 and 12 digits which is expected accordingly to PPS TBOLT span .
I would like to know if I am at the limits of the TBOLT for close in stability measurements and if there is any way to improve that (may be I have missed something).
Regards
Loïc
-------------- next part --------------
A non-text attachment was scrubbed...
Name: tbolt.gif
Type: image/gif
Size: 42103 bytes
Desc: tbolt.gif
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20111107/4bec7a7e/attachment-0001.gif>
