[time-nuts] Racal-Dana 1992 Startup -- GPIB!

[Chuck Forsberg WA7KGX N2469R]

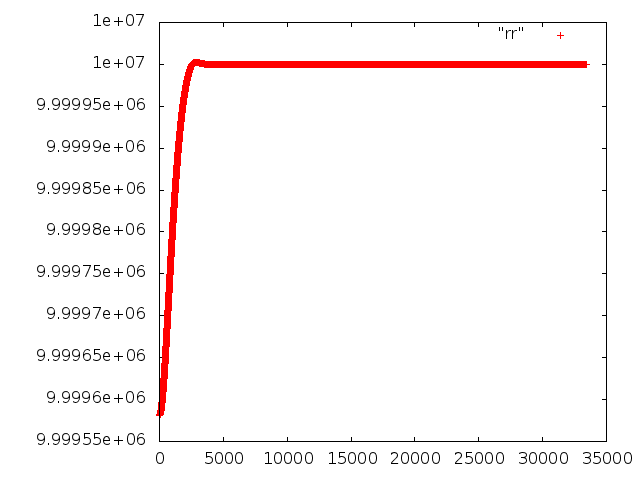

I found a use for the GPIB interface on my counter - record
the frequency drift of its internal timebase during warm up.
It looks like an oven warming up.  I don't know exactly which
timebase my 1992 has, but I did notice the 5 to 10 MHz doubler
on the back of the oscillator,  The back has separate coarse
and fine frequency adjustments.  Can someone identify which
timebase is fitted to this counter?

The link below has the story and plot.

http://www.omen.com/ham/racal.html

--
Chuck Forsberg WA7KGX N2469R     caf at omen.com   www.omen.com
Developer of Industrial ZMODEM(Tm) for Embedded Applications
   Omen Technology Inc      "The High Reliability Software"
10255 NW Old Cornelius Pass Portland OR 97231   503-614-0430

-------------- next part --------------
A non-text attachment was scrubbed...
Name: xrr.png
Type: image/png
Size: 5018 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20111116/72a421a8/attachment-0001.png>
