[time-nuts] Hp 5316B capture s/w

John Miles jmiles at pop.net
Tue Oct 18 13:09:41 UTC 2011

> -----Original Message-----
> From: time-nuts-bounces at febo.com [mailto:time-nuts-
> bounces at febo.com] On Behalf Of Tim Tuck
> Sent: Tuesday, October 18, 2011 4:36 AM
> To: Discussion of precise time and frequency measurement
> Subject: [time-nuts] Hp 5316B capture s/w
> Hi all,
> Does anyone know of a simple program to capture the frequency data from
> a HP 5316B over a time period via GPIB ?
> I'd like to do some tests on some oscillators I have vs temperature.
> thanks
> Tim

The beta version of TimeLab can do that (
http://www.miles.io/timelab/readme.htm ).  Set your counter to talk-only
mode, and use "Acquire->Acquire from GPIB Counter in Talk-Only mode."
There's some online help in the acquisition dialog, but beyond that you'll
need to go through some trial and error, as there are no other docs right

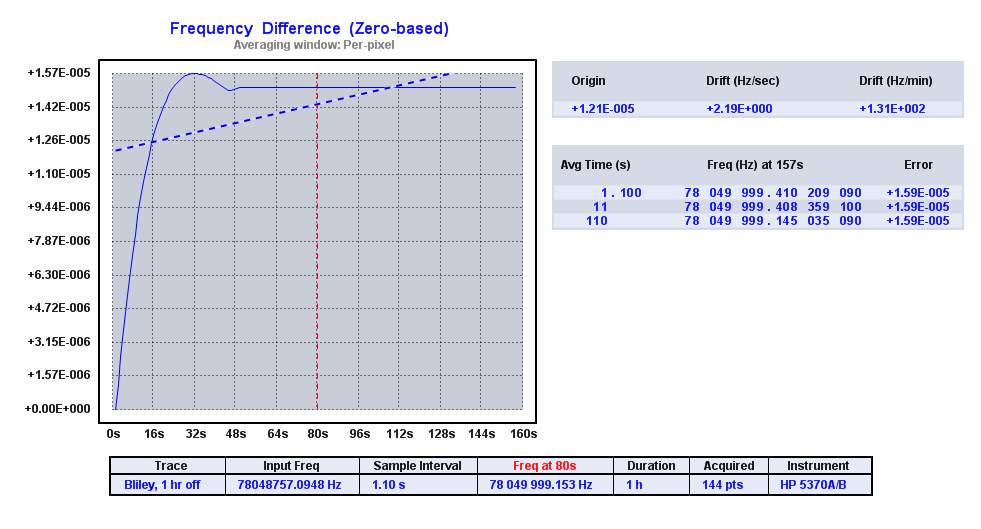

now.   Ultimately you should end up with a graph that looks like the
attached one.

-- john
-------------- next part --------------
A non-text attachment was scrubbed...
Name: warmup.png
Type: image/png
Size: 45019 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20111018/63a6d4ca/attachment-0001.png>
