[time-nuts] Rubidium Performance

John Miles jmiles at pop.net
Sun Feb 5 21:27:09 UTC 2012

> John
> Thank you for your effort. It would be nice if you could confirm the 4 to
>  Hz dither that seems to be the loop time constant and long term aging
> will  influence the GPS/Rb control loop time constant setting. I did see 1
> E-12 per  month which may be unique to that unit.
> Bert Kehren

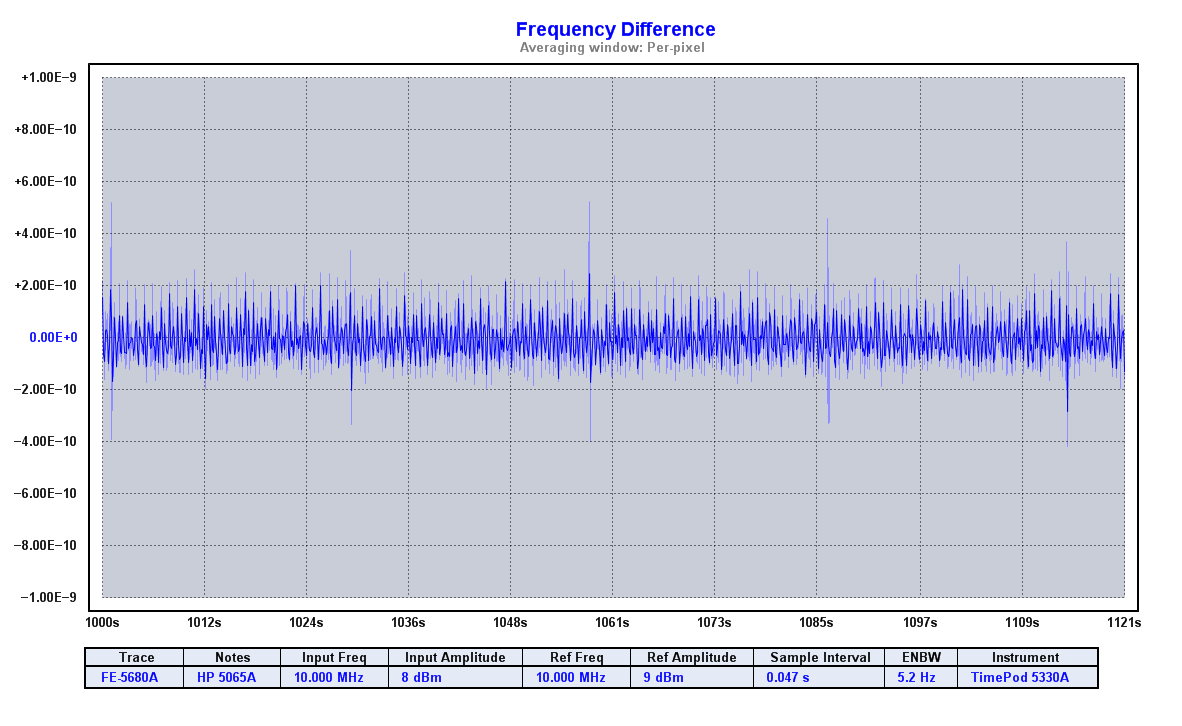

There's a lot of impulse-like structure in the 10 MHz signal from the units
I have, certainly.   You can see the spikes here that are associated with
the spurs at multiples of 1 Hz in the earlier PN plot, as well as some even
stronger pulses that show up about every 28 seconds.  They might correspond
to the grand repetition rate of the DDS.

I don't see anything specific around 4-5 Hz except for the 1 Hz harmonics.

-- john

-------------- next part --------------
A non-text attachment was scrubbed...
Name: freqdiff.png
Type: image/png
Size: 99895 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20120205/f6d37850/attachment-0001.png>
