[time-nuts] Update on Rb Performance

John Ackermann N8UR jra at febo.com
Sun Feb 19 01:59:02 UTC 2012

This isn't the real long-term stability test I'm planning to do, but I
did let the measurement continue on the last unit I was testing (an
Efratrom FRS-type) out to 10+ days, which should give fairly reasonable

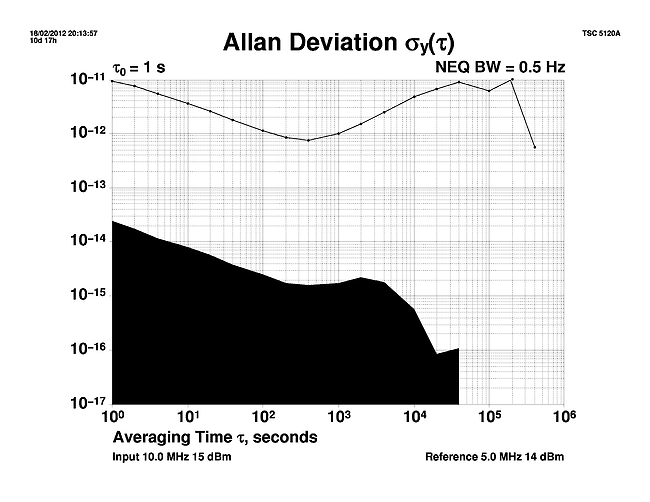

data out to 100K seconds.  An ADEV plot is attached.  I would ignore the
last two plot points as there isn't enough data for them to be very

Bottom line is that Efratom specs the FRS units at <1e-10/day, and this
one seems to do more than an order of magnitude better.  But also looks
like you need a lot more than 10 days data to draw any real conclusions;
you can look at this plot and think that the ADEV is maybe heading back
down after a peak near 1e-11.


-------------- next part --------------
A non-text attachment was scrubbed...
Name: frs_2_longer_term-adevplot.png
Type: image/png
Size: 173072 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20120218/d2fdd8c8/attachment-0001.png>
