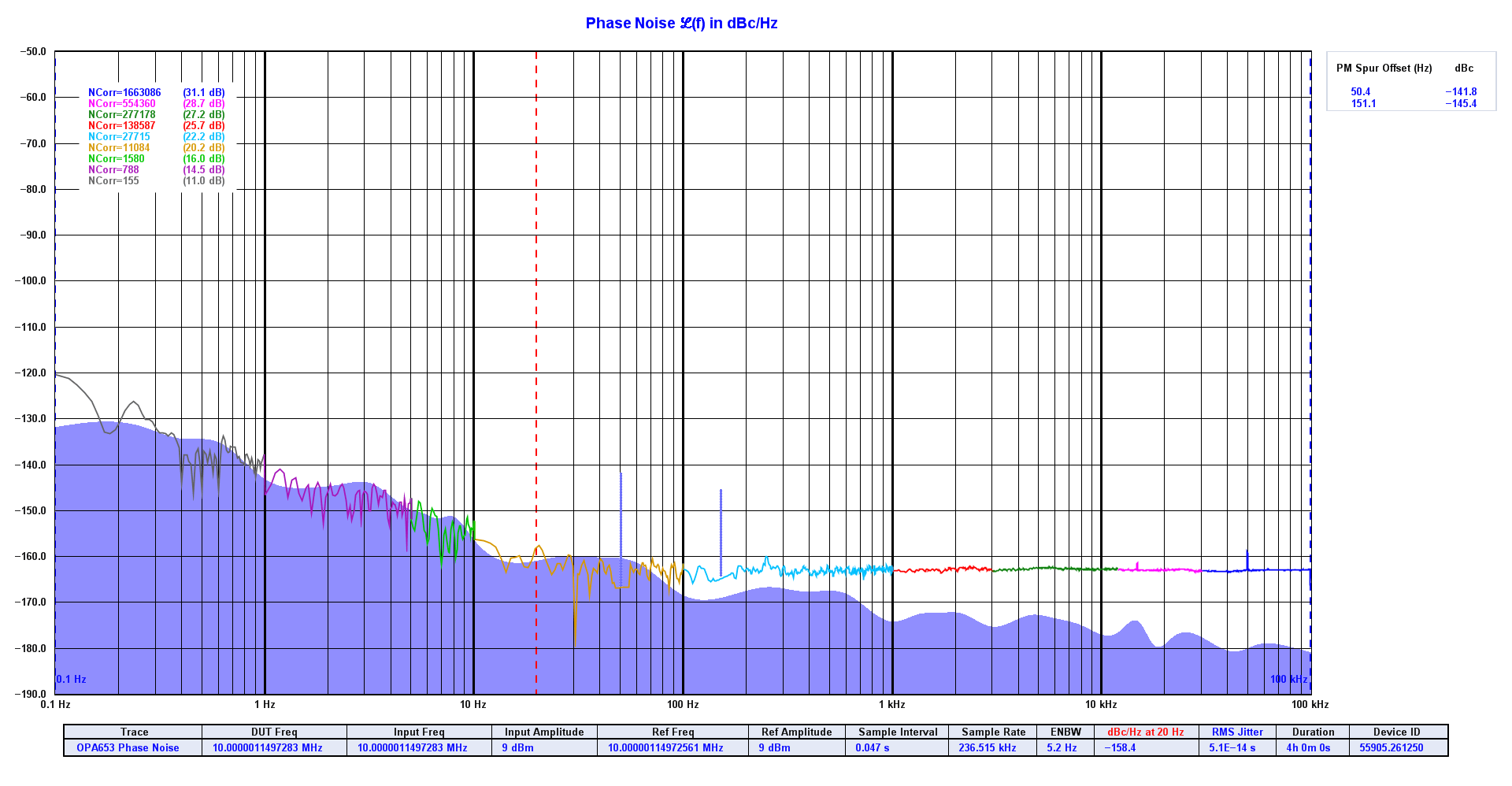

The attached plot indicates the phase noise performance obtainable with
a wideband FET (OPA653) input opamp.
With a 10MHz +9dBm input, the phase noise floor is around -163dBc/Hz at
1kHz offset and around -154dBc/Hz at 10Hz offset.
A quieter test source would be useful particularly for offsets below 10Hz.

Bruce
