Rick
I see this even with double oven units with much smaller changes but I run
tests with the unit sitting on a foam base and as a second test slide a
card box, just a box, over it with the foam cut in such a way that it seals
the unit. Big difference.That is how I plan to do all my D/M tests with that
unit again in a metal enclosure.

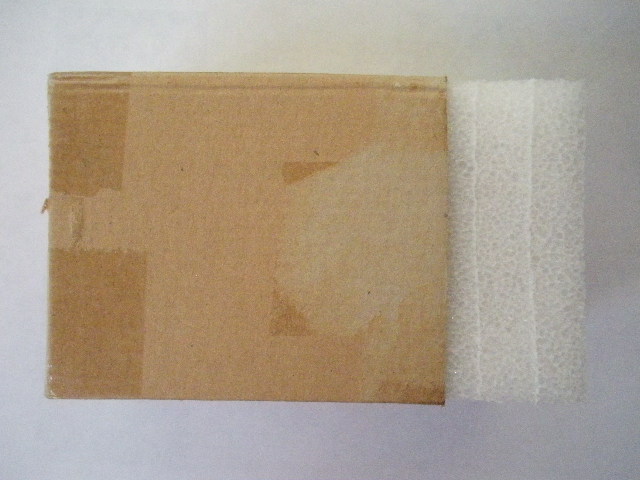

A picture is attached.
Bert Kehren
In a message dated 1/6/2012 4:15:12 P.M. Eastern Standard Time,
richard at karlquist.com writes:
John Ackermann N8UR wrote:
> I am looking for a readily available (from Home Depot or other local
> source) insulating material to use in a chassis that's housing a
> sensitive OCXO. My goal is just to slow down any external thermal
> transients so the oven loop has time to react gracefully.
Before making this into a science project, consider this data
point: We converted the oscillator in a 10811 to run in mode
B at 10.95 MHz. The tempco in mode B is about 30 ppm per degree
C. Needless to say, the converted 10811 was extremely sensitive
to crystal temperature. I could wave my hands around it and notice
the temperature change from the air currents. However, simply
putting the 10811 into a small empty cardboard box completely
solved this problem. No rocket science necessary. So in the
short term, this simple box was like a double oven. Of course,
in the long run, the 10811 thermal gain is only 1000 or so and
you can see the effect of the HVAC shutting down at 7PM, etc.
Rick Karlquist
N6RK
