[time-nuts] FE-5680A arrived

[Chuck Forsberg WA7KGX N2469R]

The 15 volts comes from an old Toshiba laptop ps.
The 5 volts is from another switcher, similar to the  famous Meanwell.

http://www.omen.com/ham/gpsd.html

The 15 volts seems fairly clean on my 2712.
My Racal-Dana 1992 does emit a signal on 10 MHz.


On 01/12/2012 03:40 AM, Javier Herrero wrote:
> Hello,
>
> What kind of power supply are you using for it? If a switching one,
> perhaps this is the origin.
>
> Regards,
>
> Javier, EA1CRB
>
> El 12/01/2012 11:39, Chuck Forsberg WA7KGX N2469R escribió:
>> I received my Ebay Tek 2712 spectrum analyzer Monday and I have been

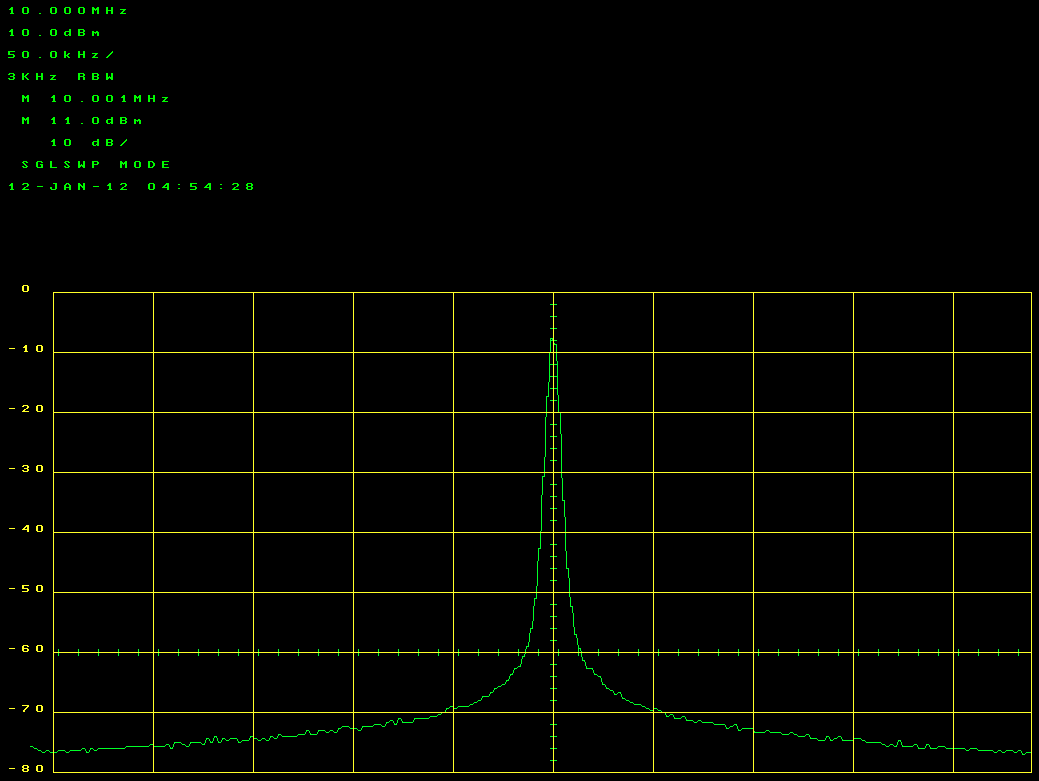

>> throwing software to read its data via GPIB.  Here is a spectrum I got
>> connecting the Rb 10 MHz to the 2712.  Nice little spurs.  I don't see
>> anything to account for these anywhere else.
>>
>> The 2712 is a big step up from Ham radio fish finders and I'm
>> still learning things about the 2712.  It would be nice to have
>> original easy to read printed manuals and/or a high quality
>> PDF.  The black and white (no greyscale) PDFs on the internet
>> are hard on the eyes and not searchable.
>>
>>
>>
>> _______________________________________________
>> time-nuts mailing list -- time-nuts at febo.com
>> To unsubscribe, go to
>> https://www.febo.com/cgi-bin/mailman/listinfo/time-nuts
>> and follow the instructions there.
>
> _______________________________________________
> time-nuts mailing list -- time-nuts at febo.com
> To unsubscribe, go to
> https://www.febo.com/cgi-bin/mailman/listinfo/time-nuts
> and follow the instructions there.
>

--
Chuck Forsberg WA7KGX N2469Rcaf at omen.com    www.omen.com
Developer of Industrial ZMODEM(Tm) for Embedded Applications
   Omen Technology Inc      "The High Reliability Software"
10255 NW Old Cornelius Pass Portland OR 97231   503-614-0430

-------------- next part --------------
A non-text attachment was scrubbed...
Name: rb7.gif
Type: image/gif
Size: 13480 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20120113/cfe3d48d/attachment.gif>
