[time-nuts] 5MHz ocxo- Opening Solder sealed cans

Tom Miller tmiller at skylinenet.net
Fri Jul 27 02:17:51 UTC 2012


I agree with Ron. Clean the board up real good then do an inspection. With a
microscope if you can get your hands on one. Look for cracked SMT parts. The
high heat from the oven could very well stress the parts causing a failure.
Flux the board up and hit all the connections with a small iron. When you
melt the solder on each end of a part, if one is broken, it will then show
up.

Tom


----- Original Message -----
From: "Ron Ward" <n6idlron at comcast.net>
To: "'Discussion of precise time and frequency measurement'"
<time-nuts at febo.com>
Sent: Thursday, July 26, 2012 9:54 PM
Subject: Re: [time-nuts] 5MHz ocxo- Opening Solder sealed cans


Hi:
I have been looking at the poor quality solder joints on the oscillator.
If you have a steady hand and a small tipped soldering with silver
baring (about 2% silver) solder, I would re-solder the connections. Many
of them do not look properly "wetted" and cold. Some of the heat from
removing the top may have re-soldered a problem connection.
Ron

-----Original Message-----
From: time-nuts-bounces at febo.com [mailto:time-nuts-bounces at febo.com] On
Behalf Of Paul Flinders
Sent: Thursday, July 26, 2012 2:59 PM
To: Discussion of precise time and frequency measurement
Subject: Re: [time-nuts] 5MHz ocxo- Opening Solder sealed cans

On 26/07/12 20:49, Tom Miller wrote:
> Pick up a few sticks of ChipQuik and mix it in with a good iron. Then,

> you may do just what you say. It should melt below about 95°C.
> A good hot air heat gun would most likely do the trick. Maybe use some

> solder wick first to lower the amount of tin/lead solder. Then add the

> chipquik.
>
> You might also just solder a tab on the bottom then you could clamp
> the top in a leather jawed vise. Hit it with a hot air gun while
> pulling on the base tab.
>

Well, a few exploratory attempts confirmed my initial suspicion that I
don't have a soldering iron big enough for the job - the largest I have
is 60W or so, and the hot air gun didn't touch it even set to 480deg C

So, I reached for the next larger source of heat which is a small
blowtorch I have, set a small flame and ran it round the whole seam then

pulled the top off with a gloved hand. Things did get a bit warm but
only for a short while.

The first thing I encountered was some insulating foam - this was rather

sticky. Not sure whether it had gone like that over time or due to my
heating the whole thing a bit too much. On three sides the foam was

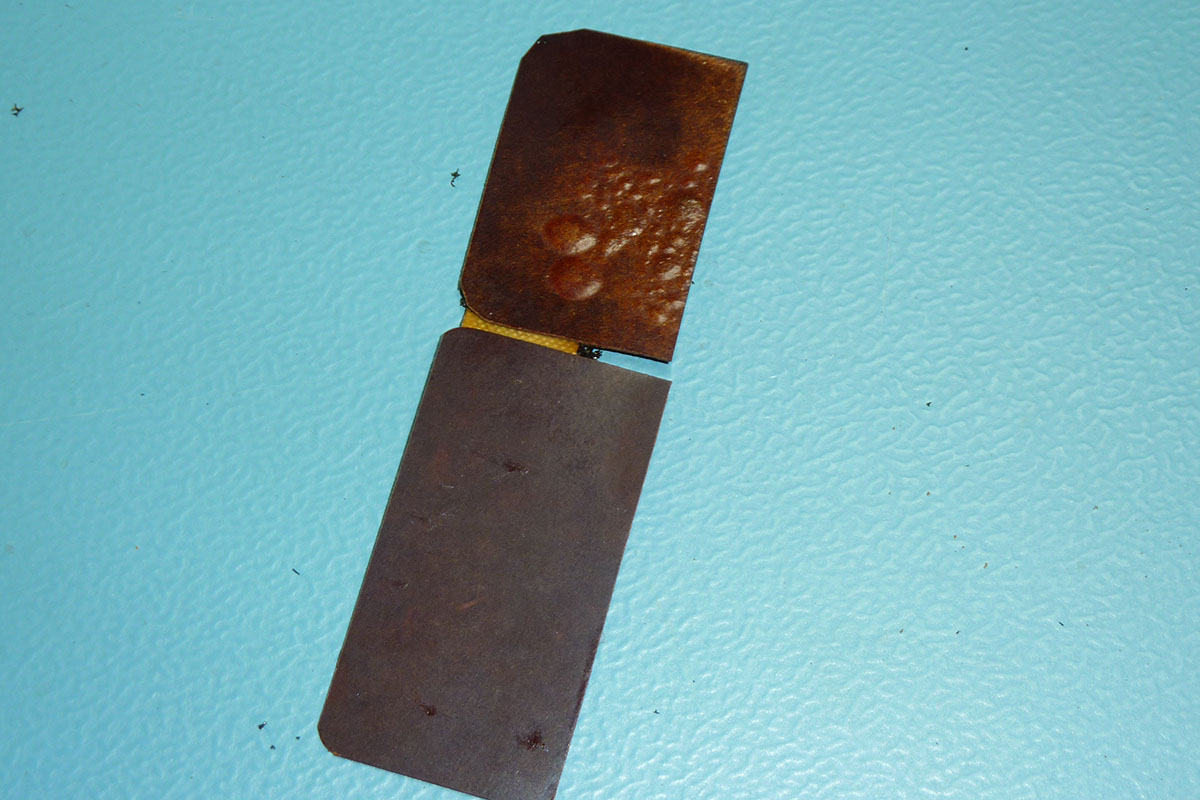

separated from the case by what looks like some thin SRBP. This had
blistered a bit so obviously things were a bit hot just there but the
foam was much the same whether "protected" by the SRBP so I'm wondering
whether this has just disintegrated over time.

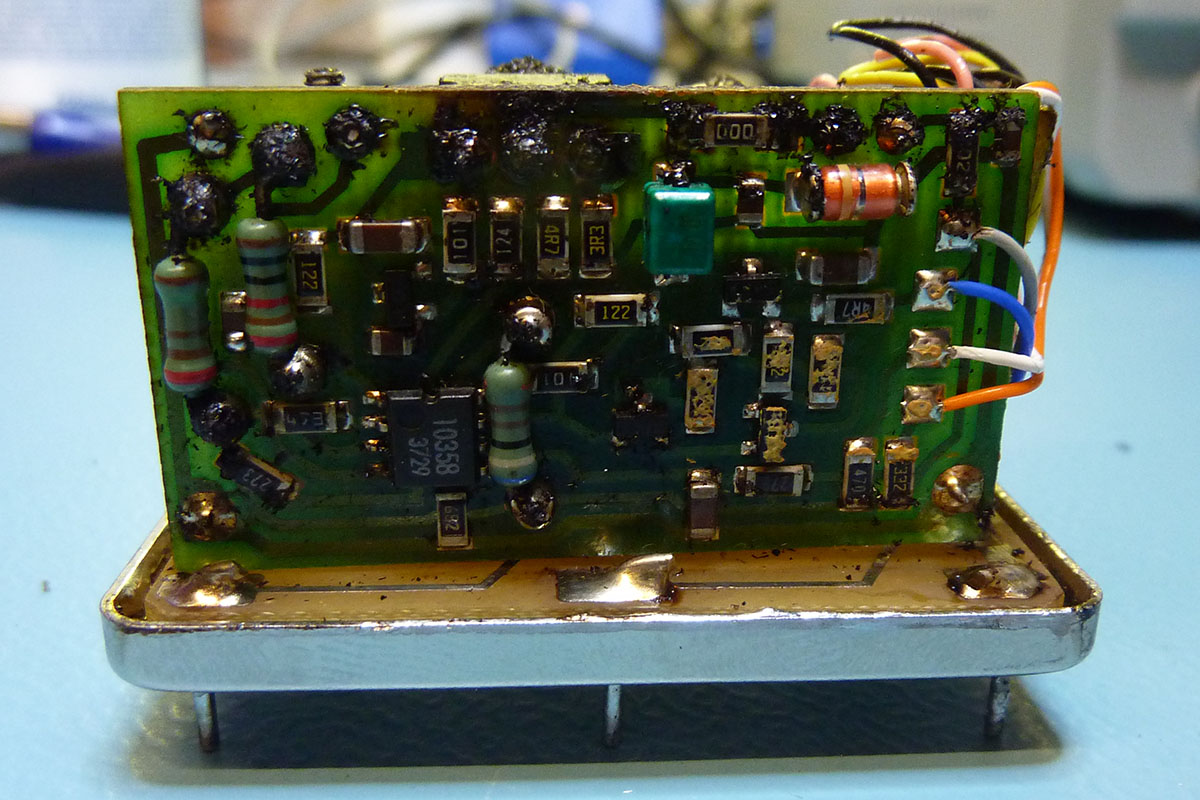

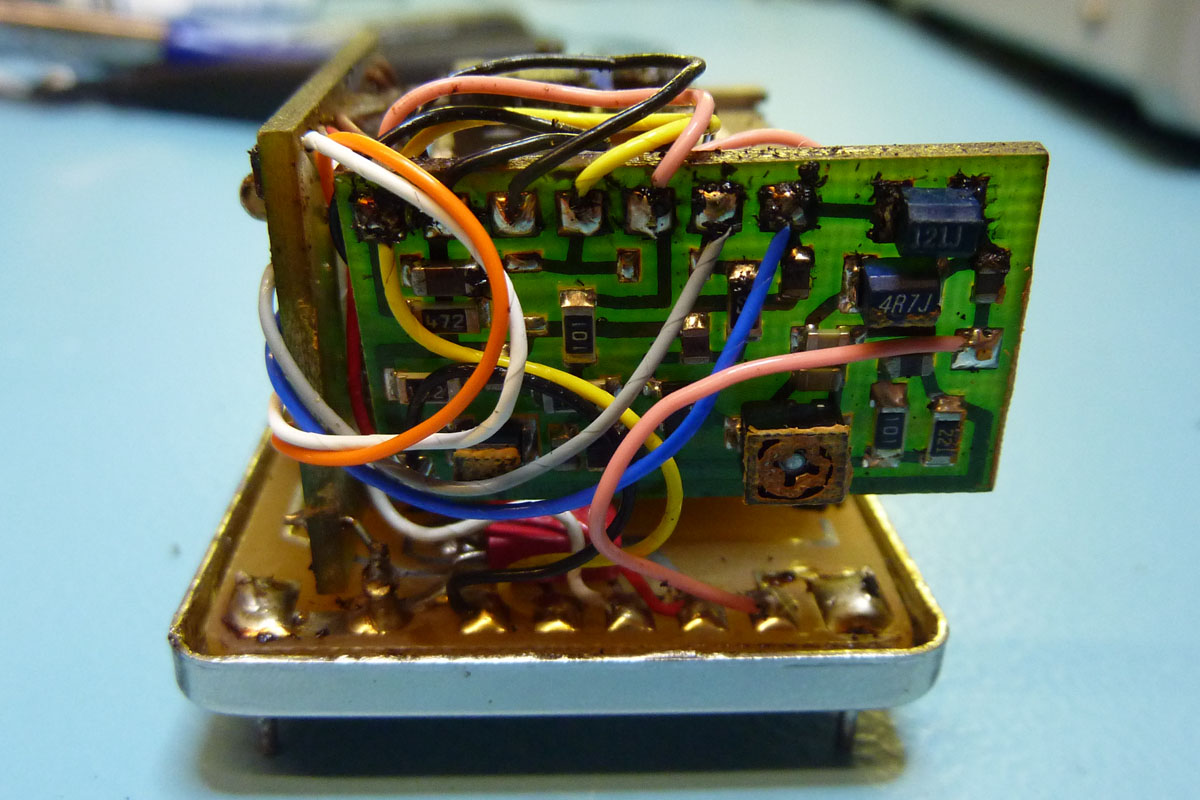

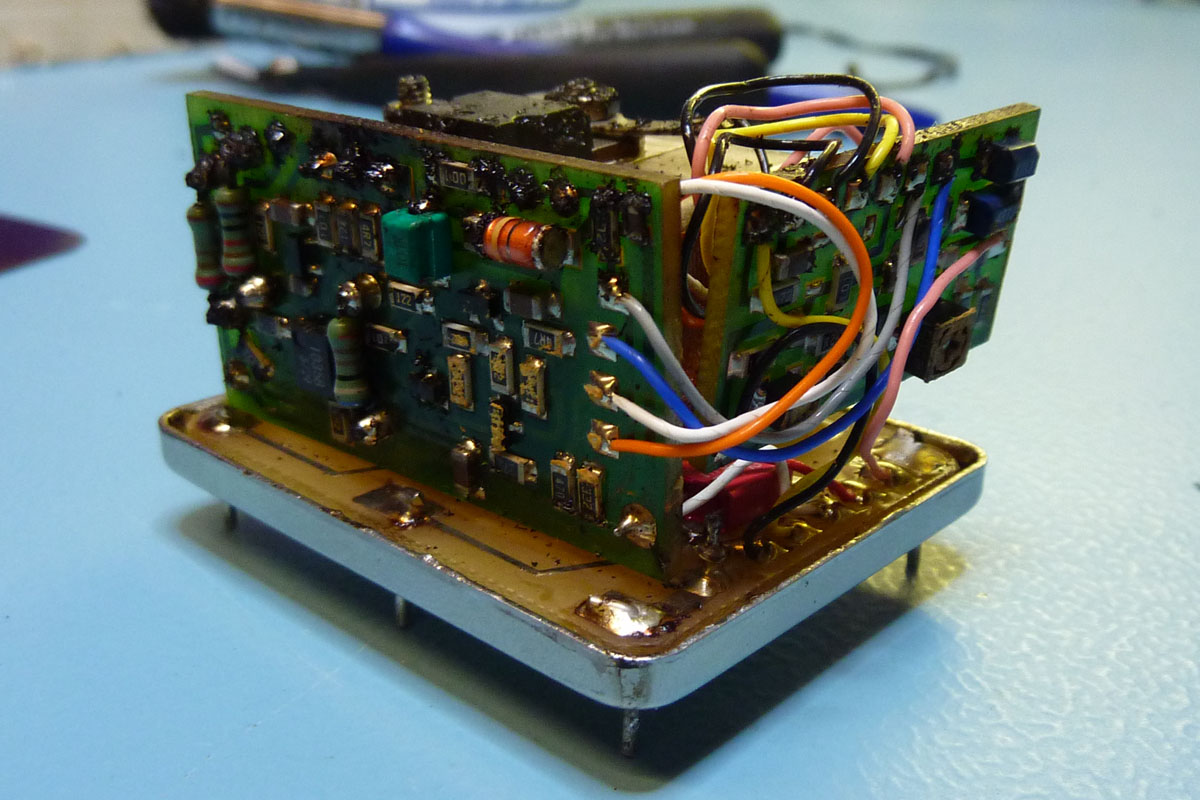

Pulling/washing the foam off reveals three PCBs and a further enclosed
metal case with the crystal. A TIP21 bolted to this acts as the heating
element. Originally there had been some cable ties anchoring the crystal

enclosure but these were brittle - presumably from the heat of the oven.

Hooking the unit up to 12V and an oscilloscope shows that it has
survived the encounter with the blow torch and produces a nice 5MHz sine

wave at 2.5V p-p (into 10Meg ohm). Irritatingly it doesn't really want
to misbehave - presumably because whatever didn't like the heat is now
cooler with the insulating foam removed. The inner metal case gets too
hot to touch but the thermostat seems to be working because the current
drawn drops from about 380mA to 240 or so. It should probably be lower
but, again, without the usual amount of insulation it's likely to draw
more keeping the oven up to temperature.

So, as it doesn't want to misbehave, I'm not totally clear which way to
go. The output does drop to about 1.8V p-p when the oven is fully warm
which might be related to the original fault. I suppose the fact that
the fault has "gone away" eliminates the oven assembly or crystal itself

as the source of the problem.

Photos for comments or curiosity. The black stuff all over the PCBs is
the remains of the foam.

http://www.wild-pc.co.uk/images/P1020364.jpg
http://www.wild-pc.co.uk/images/P1020367.jpg
http://www.wild-pc.co.uk/images/P1020368.jpg
http://www.wild-pc.co.uk/images/P1020369.jpg
http://www.wild-pc.co.uk/images/P1020370.jpg
