[time-nuts] Z3805 hold-Over

Doug Parker doug.parker at btinternet.com
Sun Nov 11 18:36:35 UTC 2012




Hi,

I've got a Z3805 from one of the Chineese sources and had problems with the HP 11801 oscillator which came with it. Even after a couple of weeks  operartion it was moving vast EFC voltages with  the 'Holdover Uncertainty Predict'  reaching a lowest of 19uS.

So I tried the HP oscillator from my Z3801 in the Z3805 and the daily EFC change is back to a resonable level, but after 5 days of settling down, the 'Holdeover Uncertainy Predict' has only got down to 10uS.and is holding about that value.

Could some one please advise what figures they are getting. As there's something sticking in my mind that the whole system should be lower than 6.3uS after 3 days of locked operation. Or have I been dreaming.....

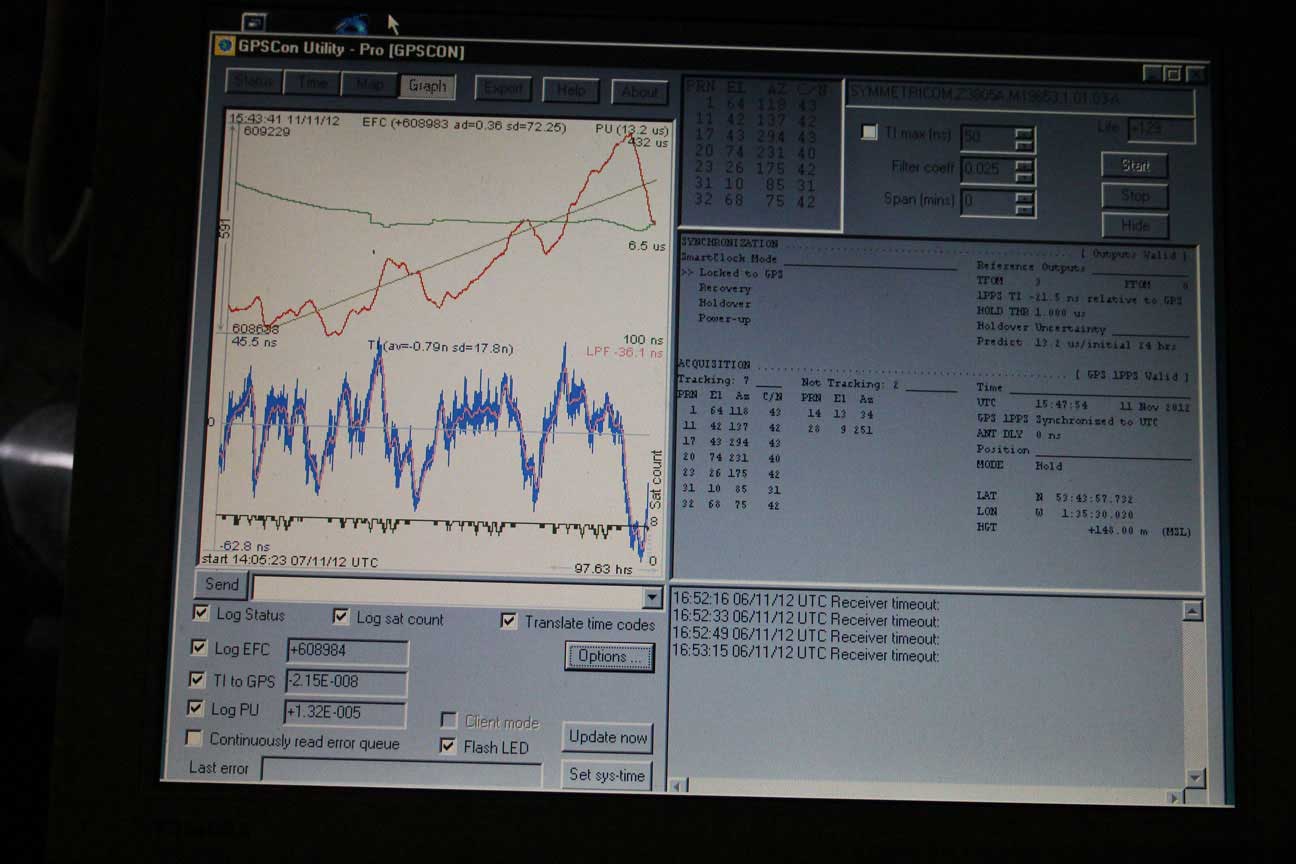

I have attached a JPG of my GPSCon graph, hope it helps

thanks & 73s
Doug
G4DZU
http://www.g4dzu.com/
-------------- next part --------------
A non-text attachment was scrubbed...
Name: 3801-5Days.jpg
Type: image/jpeg
Size: 83710 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20121111/6c47846b/attachment-0001.jpg>
