[time-nuts] Rubidium as radio reference

[Joseph Gray]

I know that some here are Amateurs and have used external sources to
provide a more accurate reference for a receiver. So, I have a noob
question or two.

Is the programmable FE-5680A suitable to replace the 12.8 MHz

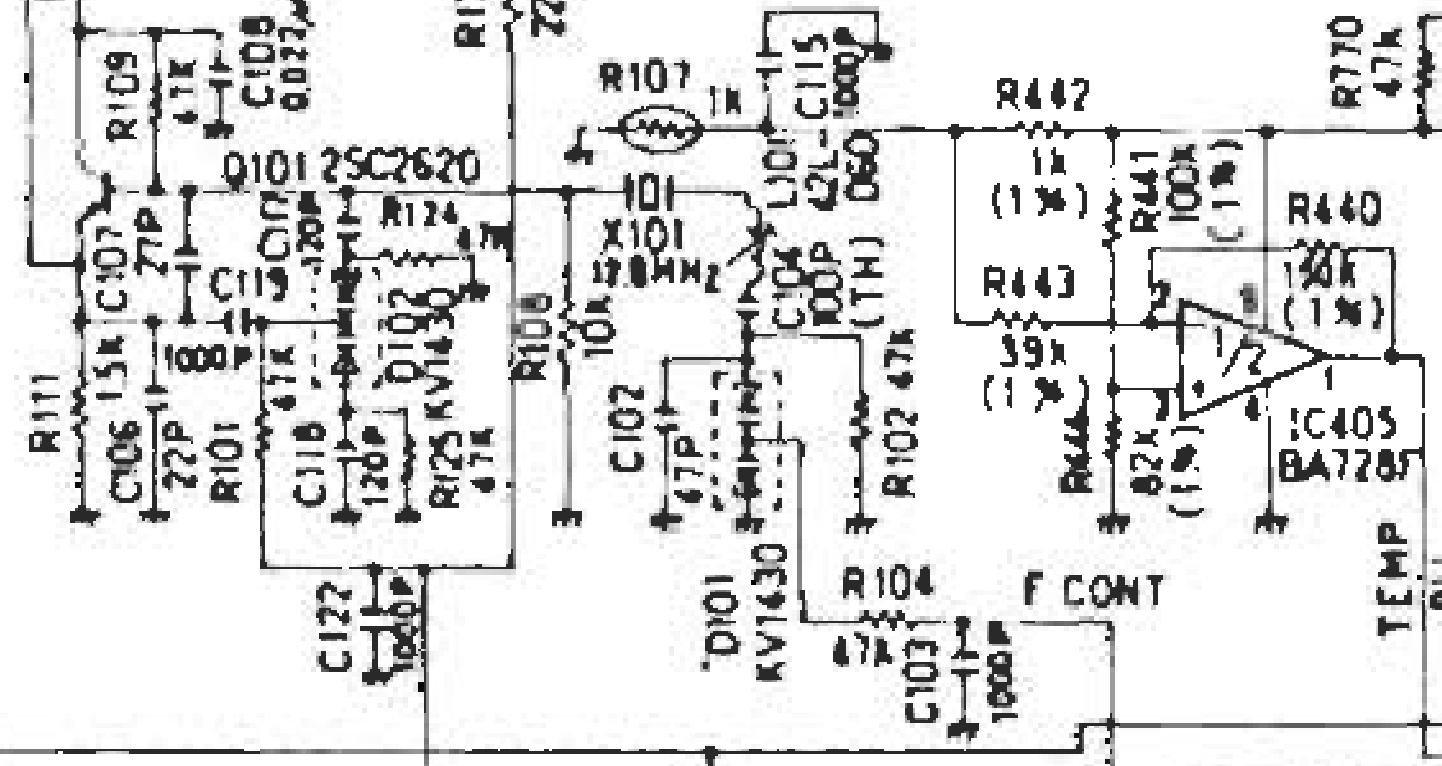

reference in a Midland XTR? If so, where do I feed the rubidium into
the circuit (see attached screen clip)? X101 is the 12.8 MHz crystal
and R107 is used for temperature compensation.

What I have in mind is to use the XTR radio for measuring off-the-air
carrier frequency error. It's just part of a project that I've been
thinking of doing. Things are still in the planning and experimenting
stage.

Joe Gray
W5JG
-------------- next part --------------
A non-text attachment was scrubbed...
Name: ScreenClip.png
Type: image/png
Size: 139595 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20121030/f737f589/attachment-0001.png>
