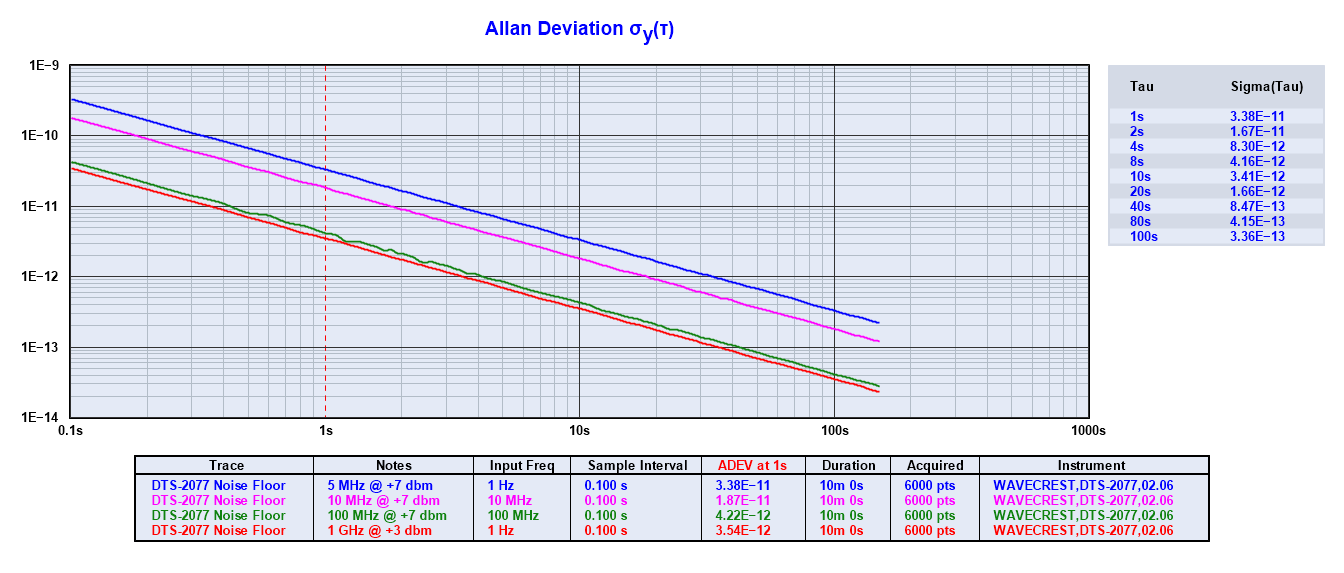

I used Timelab to assess the reaction of the DTS-2077 to different sine
wave inputs.  The differences in the noise floor are surprising.  The
attached picture was made by taking the output of an HP 8647A
Synthesized Generator through a splitter, and then through different
lengths of cables to the inputs of the DTS-2077.  The combination of
splitter and cable loss meant I couldn't get +7 dbm @ 1 GHz.  If I could
have, the 1 GHz line might have been lower than it was.

Ed

On 8/20/2013 4:42 PM, Adrian wrote:
> Ed,
>
> thanks for posting!
>
> I'm still looking for a MUX board for my faulty 2077.
>
> Is there anyone using a DTS-207x with TimeLab?
>
> Adrian
>
>
> Ed Palmer schrieb:
>> FYI, I did a teardown on my Wavecrest DTS-2077.  It's posted here:
>>
>> http://www.eevblog.com/forum/testgear/wavecrest-dts-2077-teardown
>>
>> Ed
>
>
