[time-nuts] Mains frequency (Tom Van Baak)

Tom Van Baak tvb at LeapSecond.com
Sun Nov 17 10:52:37 EST 2013


> You are of course correct. However I would most humbly point out that the cost
> of software is not zero if the time-nutter places any value on his or her time.
> ...

Hi John,

True. And if you place value on your time then it's best to use existing tools if possible. The picPET was designed to output plain ascii decimal timestamps so the data can be processed with a wide variety of existing tools.

For example, John Miles' free TimeLab program will read from a picPET directly. You can get phase, frequency, and ADEV of the power line -- live on your screen, with no effort at all.

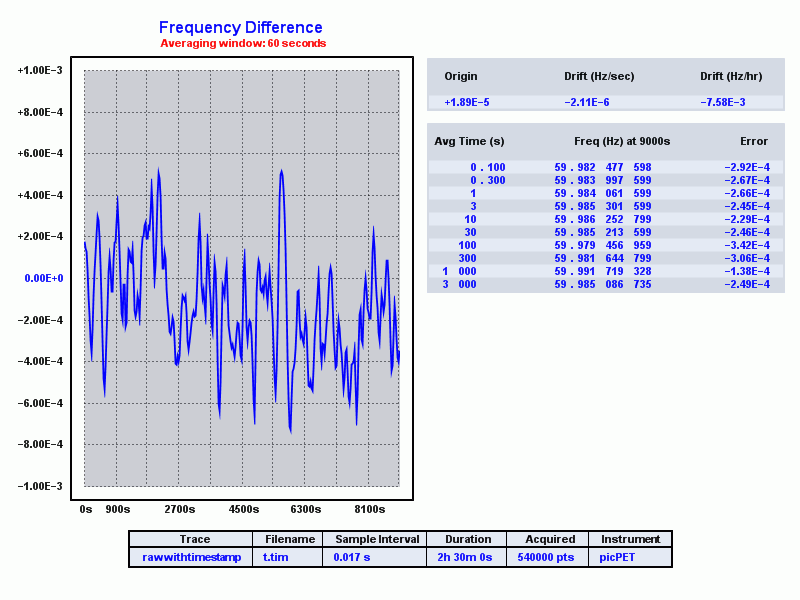

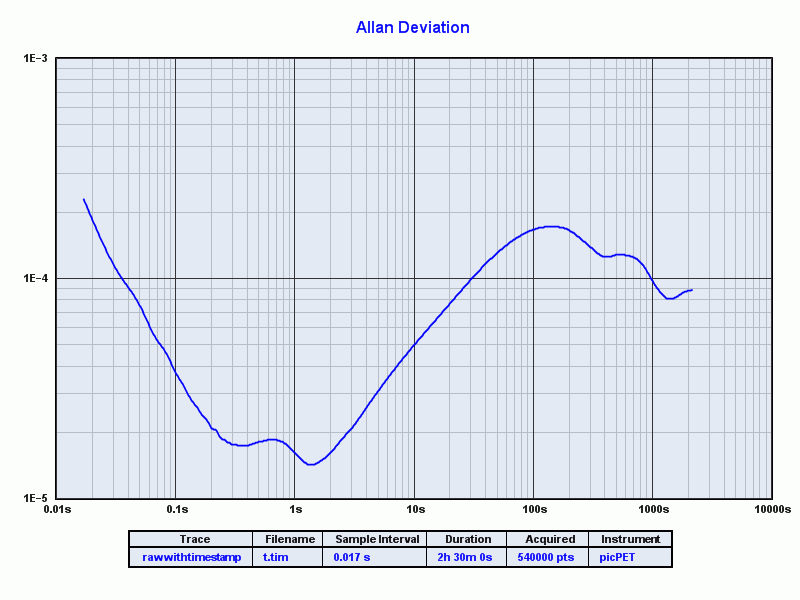

Attached is an example from mains data that Bill just collected with picPET and that TimeLab plotted.

/tvb
-------------- next part --------------
A non-text attachment was scrubbed...
Name: mains-dailey-3.gif
Type: image/gif
Size: 36873 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20131117/f72112b9/attachment-0002.gif>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: mains-dailey-5.gif
Type: image/gif
Size: 26321 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20131117/f72112b9/attachment-0003.gif>
