[time-nuts] New GPSDO on EBAY From China

Charles Steinmetz csteinmetz at yandex.com
Mon Dec 29 00:50:31 EST 2014


Li Ang wrote:

>This unit is done by BG7TBL. In his store on taobao.com,
>there is a adev chart. Please refrer to this link

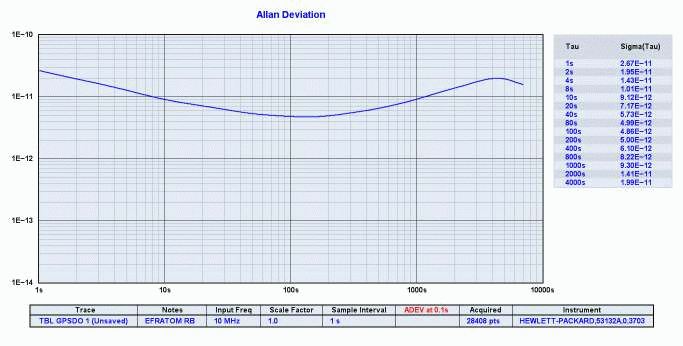

That ADEV chart (see below) raises more questions than it
answers.  At least the time constant is not too short (a very common
problem with DIY GPSDOs).  But when the GPS takes over above the
crossover (tau ~ 5000 seconds), the ADEV is ~2e-11.  GPS should be
significantly better than this at 5000 seconds.  It appears that
something is wrong with the design.

Best regards,

Charles

-------------- next part --------------
A non-text attachment was scrubbed...
Name: BG7TBL_GPSDO_ADEV_plot.png
Type: image/png
Size: 69039 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20141229/5001bc46/attachment-0001.png>
