[time-nuts] Datum Frequency Counter

[d0ct0r]

Hello Netizens !


Recently I obtain the "GPS FC" device. Its exactly as shown on the
picture from the datasheet:

http://www.gigatest.net/datum/gps-fc-e.pdf

Now I try to test it. As far as I understood (in accordance with its
specs.), it shold generate the 10Mhz signal as its locked to Satelites.
I connected it through frequency divider (by 64) to my PC-based
oscilloscope (yes, I know, I know, its not for "nuts").
I did preliminary tests with this divider with my T-Bolt and standalone
DATUM OCXDO to make sure its working (see attached files). But that GPS
FC still shows only some noise. In the datasheet, manufacturer mentioned
about so-called "test board". Does anybody knows what is this board
exactly ? For now I just connected power through the 1 MilliHenry coil
and try to get signal from it through the divider which has 0.2nF
capacitor in its input to eliminate DC).

--
WBW,

V.P.
-------------- next part --------------
A non-text attachment was scrubbed...

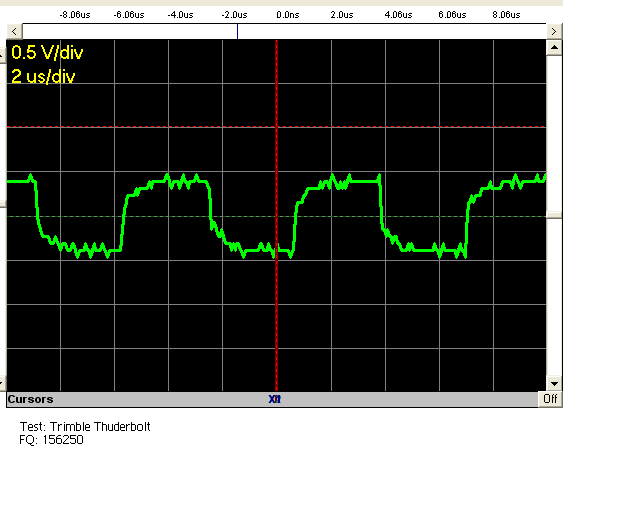

Name: tbolt.PNG
Type: image/png
Size: 16895 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20140217/415c3b8b/attachment-0003.png>
-------------- next part --------------
A non-text attachment was scrubbed...

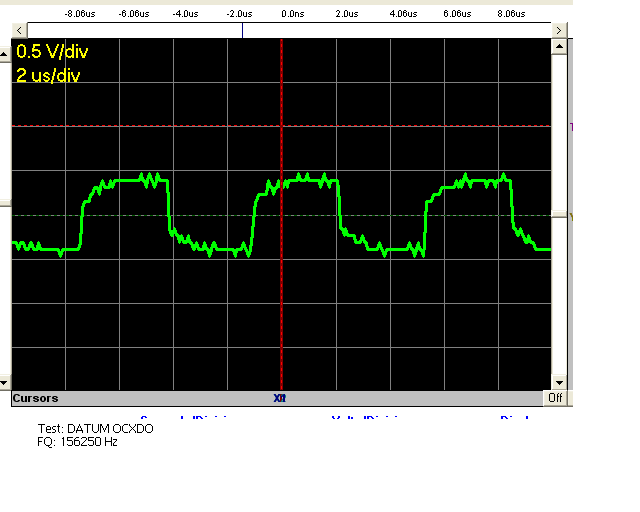

Name: datum-ocxdo.PNG
Type: image/png
Size: 17286 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20140217/415c3b8b/attachment-0004.png>
-------------- next part --------------
A non-text attachment was scrubbed...

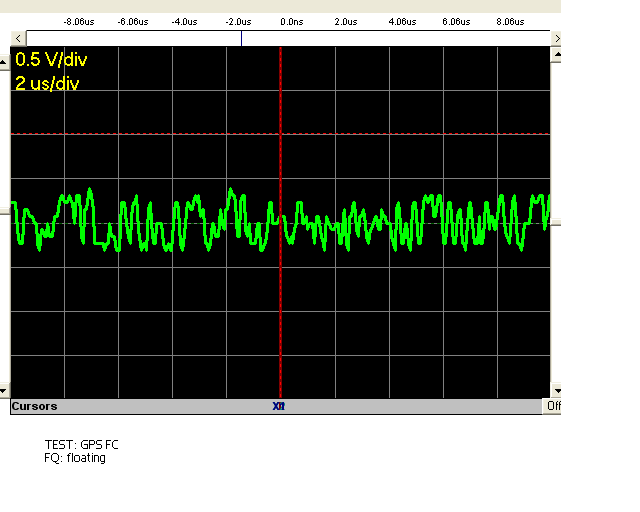

Name: gpsfc.PNG
Type: image/png
Size: 18225 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20140217/415c3b8b/attachment-0005.png>
