[time-nuts] Local Solar Time Clock
Tom Van Baak
tvb at LeapSecond.com
Sun Jan 19 16:22:29 EST 2014
> Higher than I expected from a quick look at the graph. I had 17 minutes
> total variation in 6 months in my mind!
David,
Treating solar time as an hourly time/frequency reference over one year, attached are:

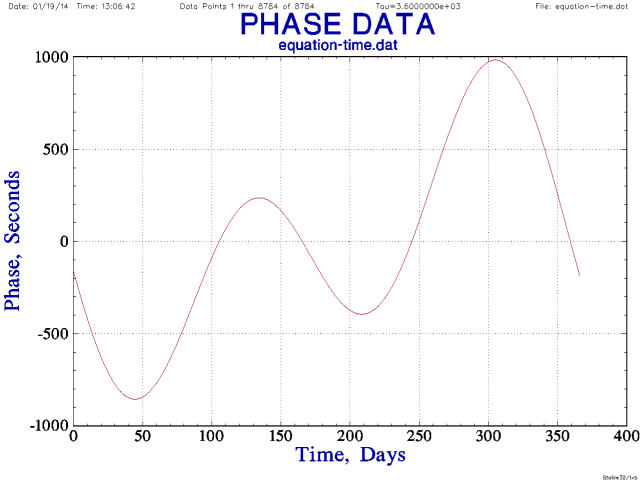

1) eot-phase.gif -- phase plot (time error); the usual equation-of-time plot you see everywhere.

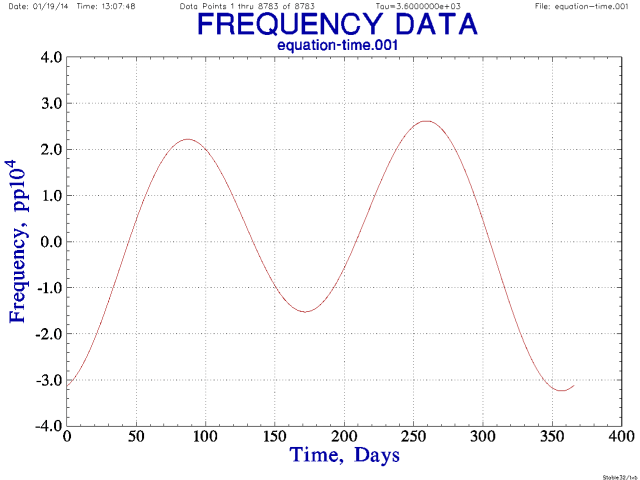

2) eot-freq.gif -- frequency plot, essentially the variation in length of "solar second".

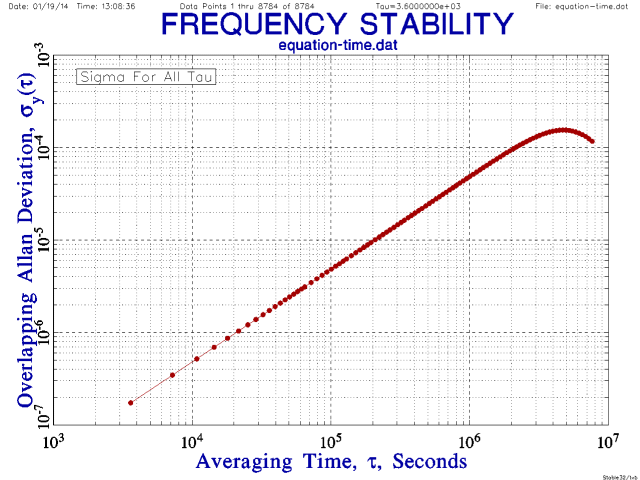

3) eot-adev.gif -- the ADEV of a clock keeping solar time.
This data came from http://leapsecond.com/tools/eot2.c (I agree there are more complex and more accurate equation of time calculations, but this is good enough for ADEV).
/tvb
-------------- next part --------------
A non-text attachment was scrubbed...
Name: eot-phase.gif
Type: image/gif
Size: 23055 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20140119/fa576626/attachment-0003.gif>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: eot-freq.gif
Type: image/gif
Size: 25822 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20140119/fa576626/attachment-0004.gif>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: eot-adev.gif
Type: image/gif
Size: 46148 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20140119/fa576626/attachment-0005.gif>
