[time-nuts] ADEV from phase or frequency measurement

Volker Esper ailer2 at t-online.de
Sun Mar 2 18:50:06 EST 2014


Sorry for the "time delay"...

TIC: SR620 with Z3805 as external reference; signal source
Nortel/Trimble GPSTM (GPSDO) 10MHz output

Enclosed two plots (SW: "Plotter"):
- one is sigma(tau) calculated from phase samples (SR620 TIME mode),
- the other one is sigma(tau) from frequency data (SR620 FREQ mode)

Whole equipment had a power up time of several days/weeks. Room
temperature was stable over both measurements (within about 2 degrees C).

Volker




Am 01.03.2014 14:43, schrieb Magnus Danielson:
> On 01/03/14 13:25, Volker Esper wrote:
>> Thank you, Tom, so far. Yes, I know that I have to use different
>> formulas, but - of course - I didn't calculate the ADEV curves myself, I
>> let some software do the job, namely Ulrich's Plotter and TimeLab as
>> well. Plotter has a menu item, where you have to check if you deal with
>> phase or frequency data, so I assumed the software would do right.
>>
>> I am confused. The ADEVs of the phase data are about 10 times better and
>> have a different shape...
>
> Can you supply the TimeLab plots or even measurement files?
>
> What was your counter and setup?
>
> Cheers,
> Magnus
>
> _______________________________________________
> time-nuts mailing list -- time-nuts at febo.com
> To unsubscribe, go to
> https://www.febo.com/cgi-bin/mailman/listinfo/time-nuts
> and follow the instructions there.

-------------- next part --------------
A non-text attachment was scrubbed...

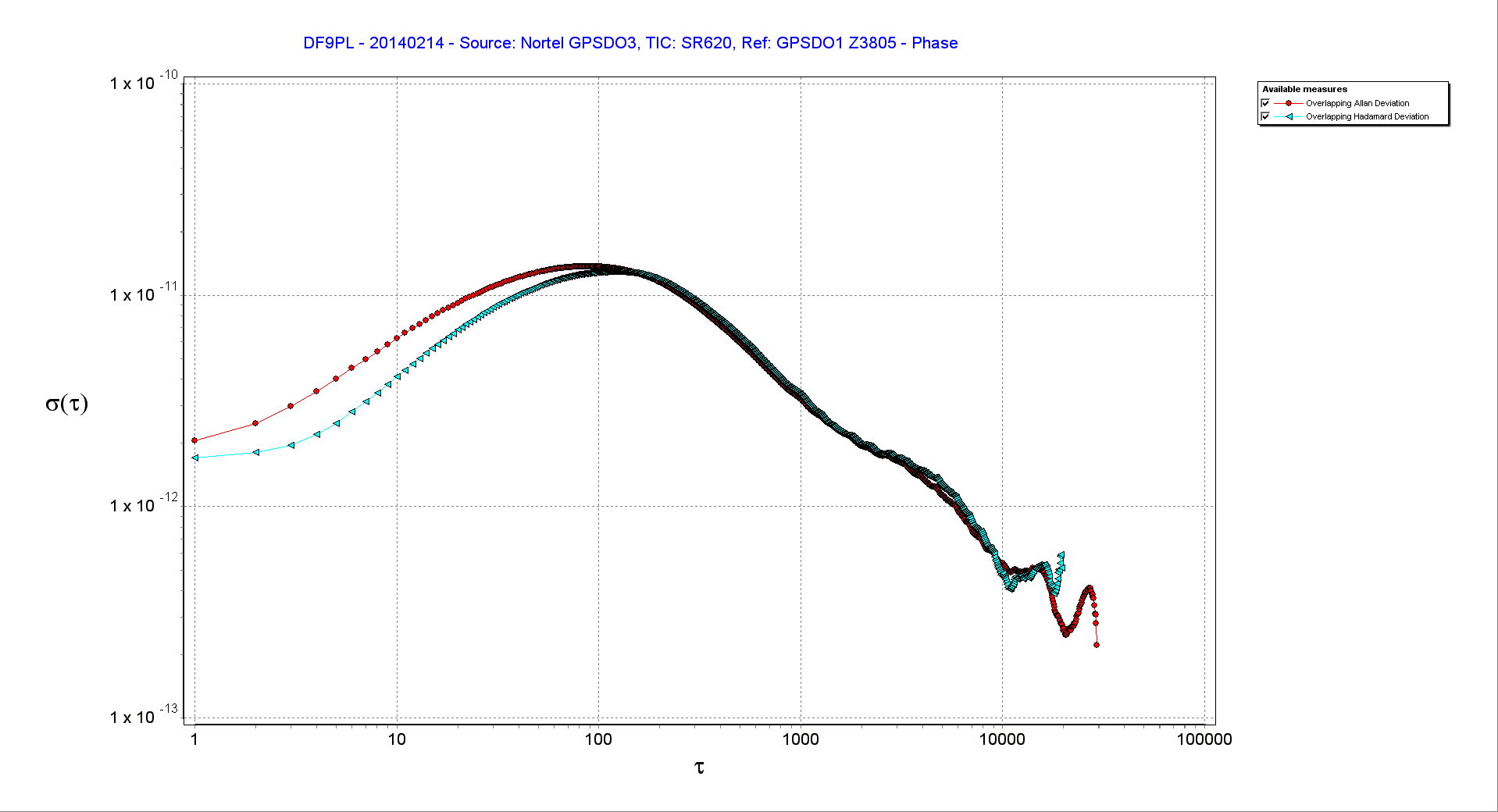

Name: DF9PL_20140214_GPSDO3_new_osc_phase_with_EFC_assembled_Philips_Supply_2_sigma.gif
Type: image/gif
Size: 27906 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20140303/a5049623/attachment-0002.gif>
-------------- next part --------------
A non-text attachment was scrubbed...

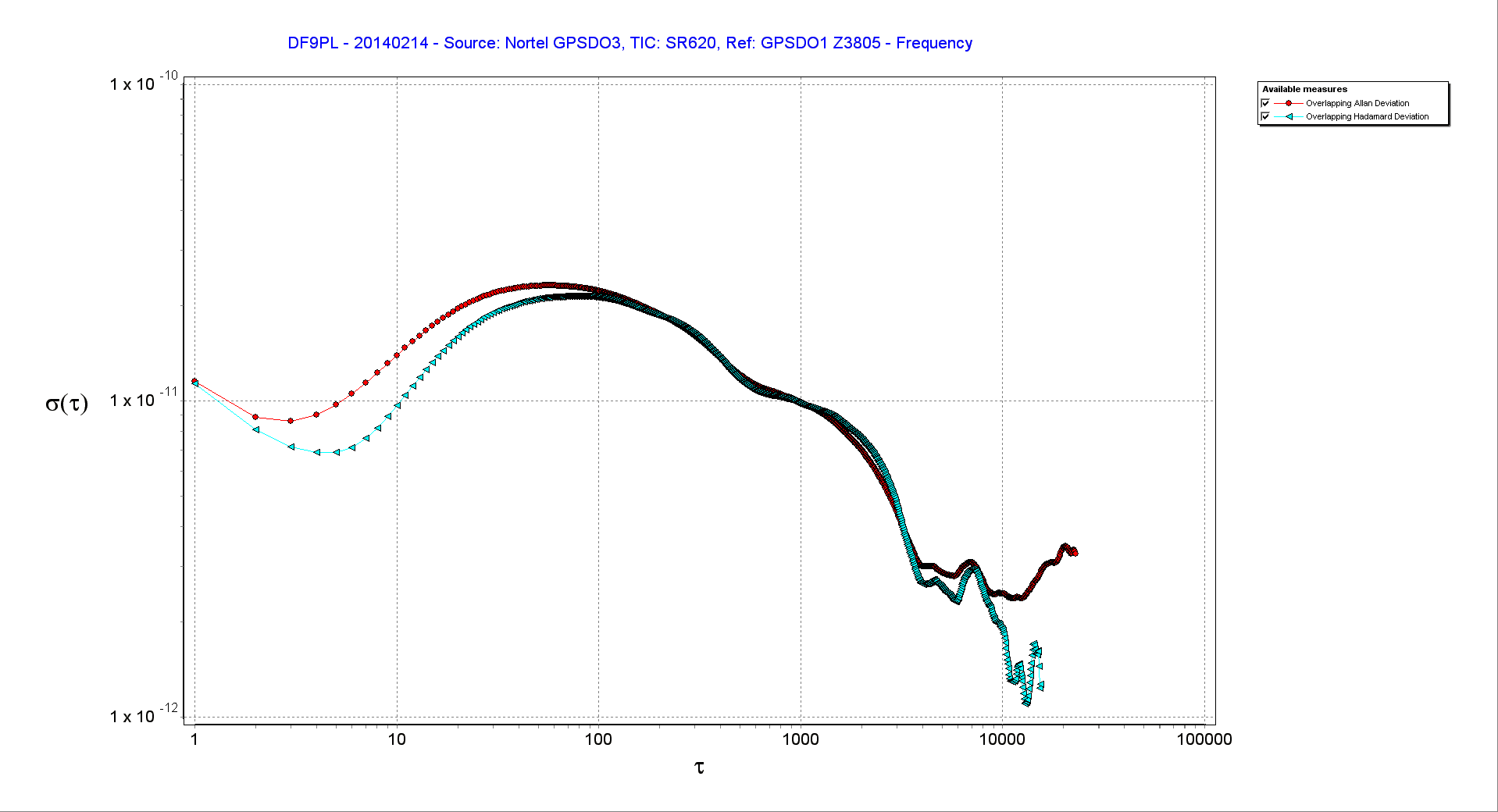

Name: DF9PL_20140214_GPSDO3_new_osc_freq_with_EFC_assembled_Philips_Supply_sigma.gif
