Chris wrote:

>If do have an external frequency reference then the crystal itself
>makes a good thermometer.  So why not use THAT thermometer to
>control the heat added by the resister.  Such a system would respond
>to changes in ambient temperature by adjusting the power in the
>resister.  We don't even have to care if the crystal's temp-co is
>nonlinear because we are using a very small temperature range, so
>small it looks linear.
>I'll build it.  Can you or anyone else subject a simple XCO
>schematic?  Hopefully SIMPLE.   What I need is a design that can be
>pulled down a few PPM so that I can raise it back with a bit of
>heat.  I will have to be kept at a temperer above the hottest it
>will ever get inside the house, maybe 100F.

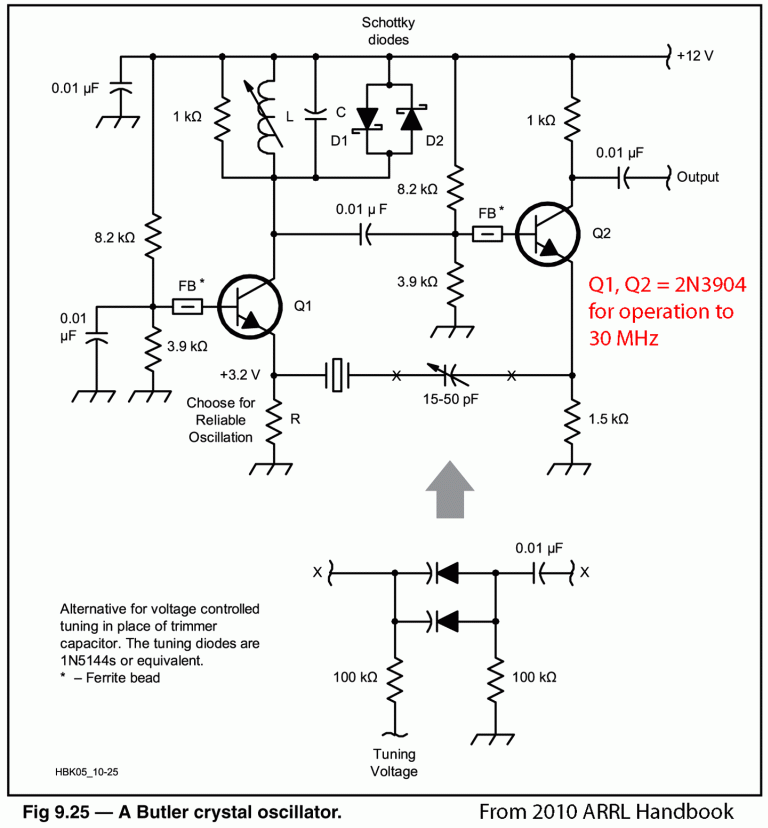

See below or attached (hopefully).  L and C are chosen to resonate at
the crystal frequency with XC and XL in the general vicinity of 100
ohms to 1k ohms.

What you are proposing is a disciplined oscillator using the oven
setpoint as the control input.

Best regards,
