[time-nuts] GPSDO simulation tool

Tom Van Baak tvb at LeapSecond.com
Sat Mar 22 16:00:09 EDT 2014


Hi Chris,

I'm pretty sure John distributes complete source code to TimeLab as part of the installation.
My source code is at www.leapsecond.com/tools
There are also many open source plotting tools available.
Not sure what you're complaining about, really.

Please try using the GPSDO simulator and let's talk time & frequency instead of open & closed operating systems.

Here's an example of what you can do -- varying the pre-filter from 1 to 1000 seconds.

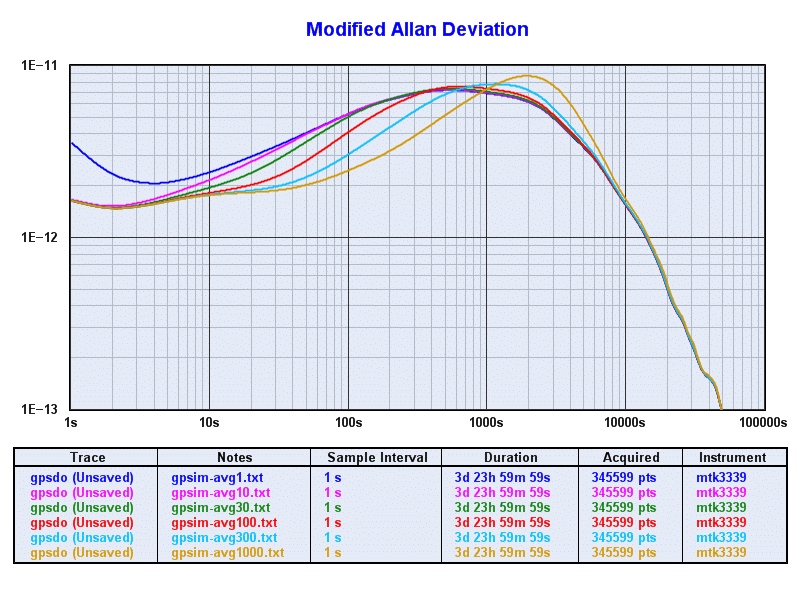

First, using the cute little Adafruit "Ultimate GPS" MTK3339 board: gpsim-22.gif

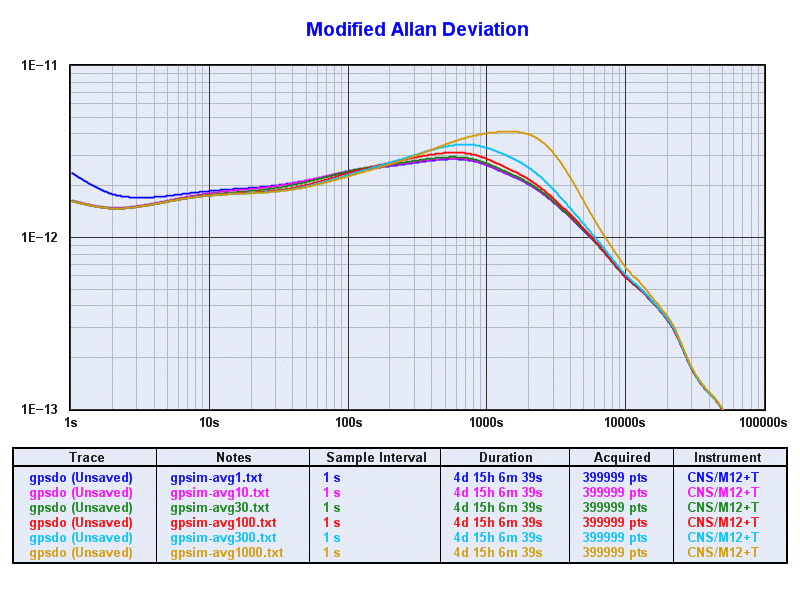

Second, using the fancy CNS-II M12+T box: gpsim-23.gif
Both with the same OCXO and same gpsim1 default P,I,D parameters.

These plots would have taken weeks of data collection. Instead it took 20 seconds with the simulator.

/tvb

----- Original Message -----
From: "Chris Albertson" <albertson.chris at gmail.com>
To: "Tom Van Baak" <tvb at leapsecond.com>; "Discussion of precise time and frequency measurement" <time-nuts at febo.com>
Sent: Saturday, March 22, 2014 11:56 AM
Subject: Re: [time-nuts] GPSDO simulation tool


Yes I could run most any MS Windows software on my iMac.   But running
it is not the point.  Closed source software like this is just a
"magic black box" and you can't see how it works.

The point is like this:  Why build a GPSDO when you can simply buy a
Thunderbolt, apply power and go?    The same answers apply to
software. You want to learn the issues involved, you want to modify it
or use it in a different environment.

Especially the last part, different environment.  I'd like to have my
GPSDO draw performance plots and some diagnostics on a little cell
phone size LCD screen.

-------------- next part --------------
A non-text attachment was scrubbed...
Name: gpsim-22.gif
Type: image/gif
Size: 67240 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20140322/496dec61/attachment-0002.gif>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: gpsim-23.gif
Type: image/gif
Size: 68753 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20140322/496dec61/attachment-0003.gif>
