[time-nuts] NIST isolation amplifiers

Charles Steinmetz csteinmetz at yandex.com
Wed Nov 26 08:52:14 EST 2014

Bruce wrote:

>A single 2N2222 or equivalent transistor in a suitable circuit
>dissipating about 200mW or so can achieve a reverse isolation of
>35dB with distortion of around -40dBc (output +13dBm) with a gain of
>unity, and an output impedance of 50 ohms with a PN floor of around
>-180dBc/Hz or so.

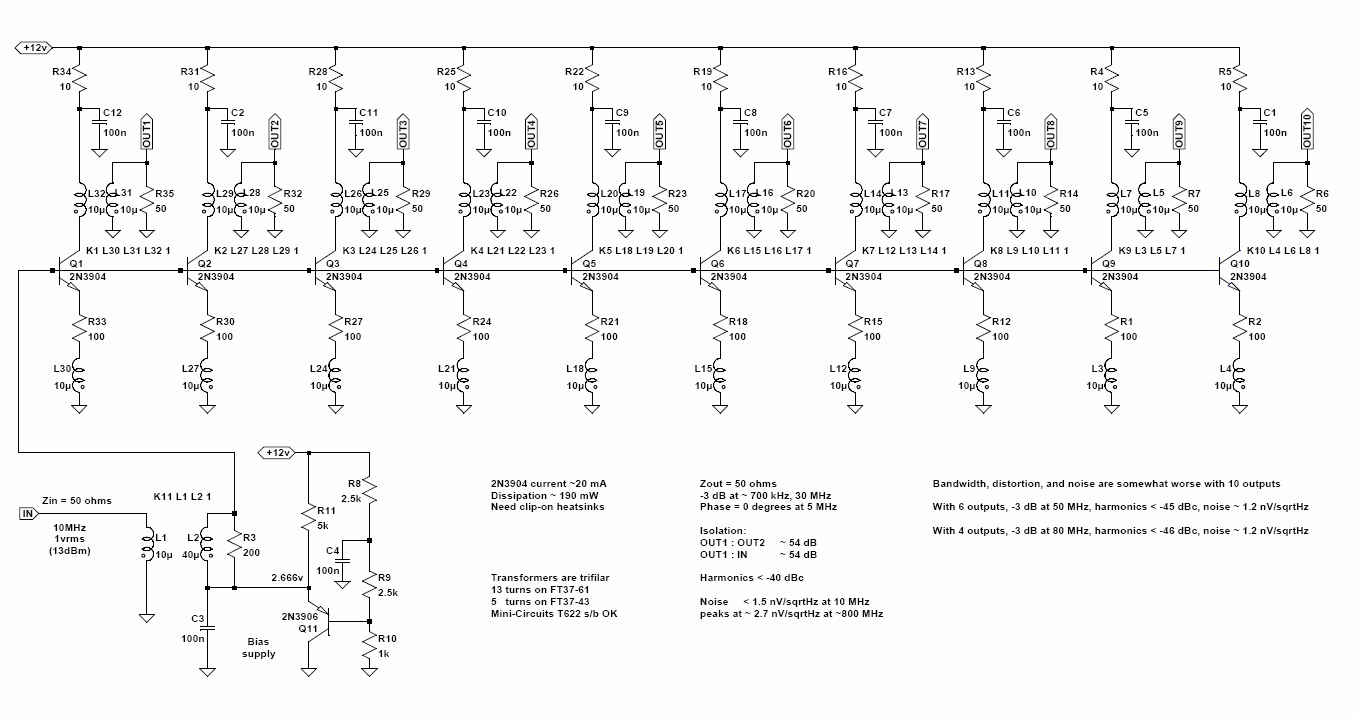

For those wondering, I suspect Bruce had in mind something like the
attached  (he posted the basic design a few years ago).  I built 8
channels using toroids on FT37-61 cores.  I think the Mini-Circuits
T622 should work, but I have not tried it.  The analyses are from my
simulation, and the constructed unit performed similarly.  The Miller
effect limits fan-out to about 10 for a 10MHz distribution
amp.  [Note: the 50 ohm resistors on the outputs represent the
external loads, and are not part of the amplifier.]

Best regards,


-------------- next part --------------
A non-text attachment was scrubbed...
Name: Distribution_amp_one_stage_CE_2N3904_after_Griffiths.gif
Type: image/gif
Size: 53026 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20141126/88a31a74/attachment.gif>
