[time-nuts] 10MHz Rubidium reference source for frequency counter

John Miles john at miles.io
Sun Oct 26 17:51:09 EDT 2014

> I know what your next question will be, "I see that these rubidium
> oscillators all can be adjusted over a range that falls on both sides of
> 10MHz.  What should I use as a calibration source to adjust my rubidium
> oscillator?"   Then you think "If I have this 10MHz calibration source, why
> not just run the frequency counter off that and not bother with the rubidium?"
> OK there is good reason to use Rb.  It warms up fast, it remains stable for
> a long time.  It is self contained and compact and does not rely on any
> external signals.

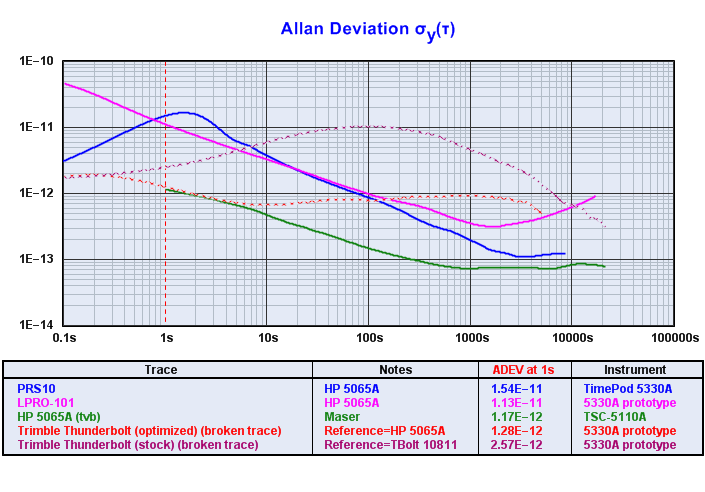

You really have to tweak the heck out of a GPSDO to achieve medium-term stability comparable to that of a cheap rubidium (see attached comparison against typical and exceptional GPSDOs.)  Of course, at taus greater than several hours the GPSDO will eventually win.

-- john, KE5FX
Miles Design LLC

-------------- next part --------------
A non-text attachment was scrubbed...
Name: Rb_vs_GPSDO.png
Type: image/png
Size: 45625 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20141026/101ab525/attachment-0001.png>
