[time-nuts] Ultra High Stability Time Base Options for 53132A

Charles Steinmetz csteinmetz at yandex.com
Tue Apr 14 03:11:30 EDT 2015

John wrote:

>All other things being equal, it's desirable to minimize the time
>spent in that region of the waveform.  It doesn't necessarily hurt
>to choose a faster logic family, as long as the process noise and
>device gain are otherwise compatible with the decision.  Random
>jitter on the 7.5 GHz ADCLK905 is specified at around 60
>femtoseconds, after all.  A residual PN test at 10 MHz on an
>ADCLK905 ends up at around -135 dBc/Hz at 1 Hz just like many other
>slower comparators, a figure that's good for 1s ADEVs in the E-14s

>To square up a 10 MHz signal from an OCXO it's hard to beat a simple
>diff amp with a pair of bipolars, a la Wenzel.

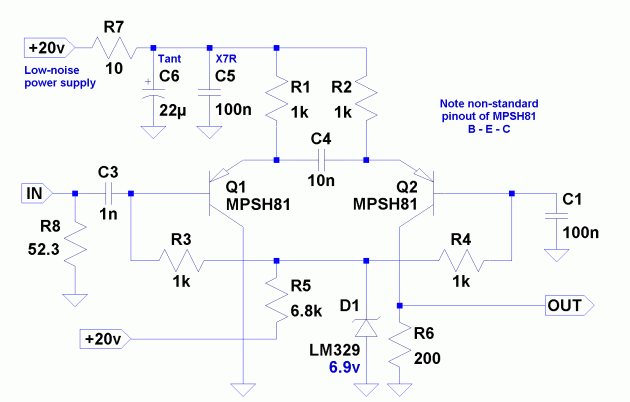

I have found the same when squaring 5-10 MHz sine waves.  I have used
the optimized Wenzel circuit shown below many times, always with

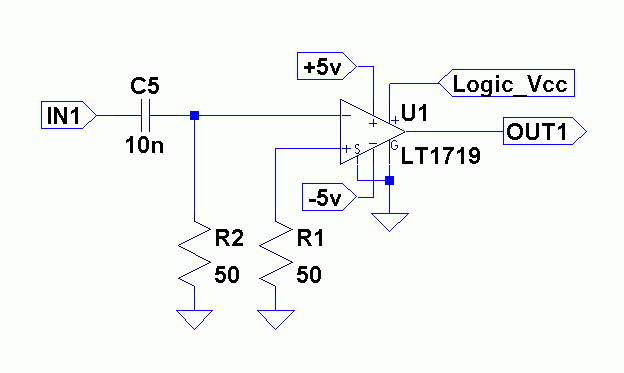

excellent results.  More recently, I have tested the LT1719 squarer
also shown below.  Both exhibit residual PN of less than -130 dBc/Hz at 1 Hz.

Best regards,


-------------- next part --------------
A non-text attachment was scrubbed...
Name: Wenzel_squarer.gif
Type: image/gif
Size: 21127 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20150414/80227736/attachment.gif>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: LT1719_squarer.gif
Type: image/gif
Size: 4966 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20150414/80227736/attachment-0001.gif>
