Andrea wrote:

>the square-law characteristic of devices should be avoided, so the
>configuration of the doubler must be some sort of "ideal" full wave rectifier

I disagree strongly with this, at least where push-push JFET doublers
are concerned.

If you look at the schematic Bruce posted on his site, which uses a
pair of J310 FETs driven into the pinch-off region, it runs the FETs
from 0 to about 21mA.  My circuit, when using J310s, runs the FETs
from about 1mA to about 16mA.  In both cases, when the FETs are
conducting they are operating as common-source linear amplifiers, NOT
as switches.

In either case, when one FET is drawing low (or zero) current, the
other one is drawing high current.  The theoretical noise improvement
due to running the low-current FET past the pinch-off point is, in
practice, totally swamped by the noise from the other FET.

In order to realize a useful reduction of noise, the FETs would have
to switch hard, from "off" (beyond pinchoff) to "full on" (with
Vgs=0) -- but JFETs don't work like that, unless you drive the gates
hard with square waves (that is how commutating mixers such as the
ones designed by Ed Oxner and the later "H-mode" mixers work).  See

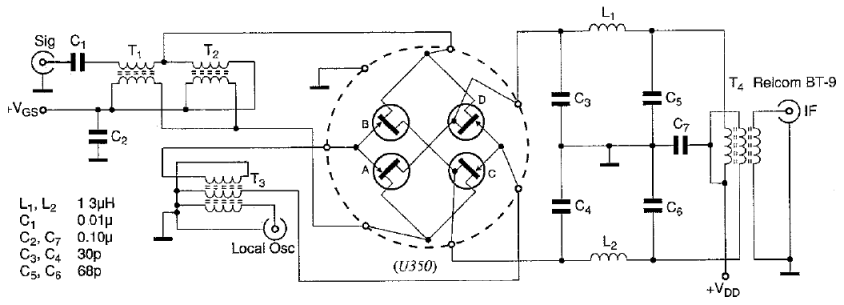

below for a schematic of an Oxner mixer using a quad JFET (but note
that commutating mixers generally use MOSFETs).

When my circuit is normalized for 50 ohm output (by using a 4:1
transformer at the output -- which is the preferred method of driving
50 ohms with it) and the bias and drive are adjusted for the same
currents as Bruce's circuit, the models predict almost identical
noise from the two circuits.  As a real-world check, I adjusted the
bias conditions and drive on my breadboard doubler to give FET
currents from 1 to about 22mA, and the measured noise decreased by a
fraction of a dB.  (The spurious distortion products rose somewhat,
but not nearly as much as when one drives the FETs beyond pinch-off.)

So no, running the FETs in Class AB or B does NOT confer a material
noise advantage compared to running them in "barely Class A," as my
design does.  It does, however, create an exponential explosion of
odd-order distortion products that must be removed if the circuit is
to be useful for time nuts purposes.  So in my view, the "barely
Class A" push-push JFET doubler is clearly superior to its Class AB
or B cousin.

>it's better to use diode-connected transistors like the 2N2222
>      *   *   *
>matching is very important, so monolithic doubles or quadruples could be the
>right choice, provided their other characteristics are compatible and the
>substrate connection is not a problem

[NB: this applies to a mixer-based doubler, not a JFET push-push
doubler.]  Again, this is a theoretical advantage that is easily
overshadowed in practice by the errors introduced by building one's
own diode DBM.  It is not impossible to build a home-brew DBM that
performs as well as a good commercial DBM, but it is not easy,
either.  Just a small imbalance due to unequal winding spacing on the
cores, small differences in stray capacitance, or geometric
differences due to the packaging of the transistors used can easily
create increased distortion products that are much worse than the 2
or 3dB reduction of noise you might realize.  I'm not saying don't do
it, just that the chances of improving things without causing
collateral damage that is worse than the cure may not be high.

Best regards,
