[time-nuts] Need tiny 5MHz 10x amplifier

Charles Steinmetz csteinmetz at yandex.com
Sun Nov 29 08:05:41 EST 2015

I wrote:

>The LT1720** works on a 3.3v single supply, and has internal
>hysteresis.  Just ground one input, ground the other through a
>resistor, and attach your AC-coupled signal (best if you can use
>equal resistors to ground on the two inputs, but if the signal
>termination is 50 ohms the other input can be 0 ohms to ground; even
>1k ohm would probably be OK).
>Note that the LT1720 is specified for inputs to 100mV below V-
>(ground, in this case) and your 200mVpp signal pushes it right to
>the limit.  A bit of attenuation is probably a good idea.
>**  The 1720 is a dual comparator, so you'd have an extra to use or
>ignore.  Alternatively, the 1719 is a single with extra features
>that you could ignore.  Either should work well in your application.

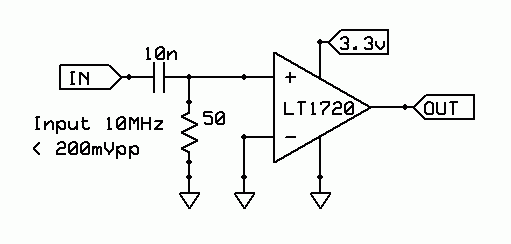

See attached schematic.

Best regards,


-------------- next part --------------
A non-text attachment was scrubbed...
Name: LT1720_squarer_DC_3.3v.gif
Type: image/gif
Size: 3590 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20151129/8f214f79/attachment.gif>
