Gary,
Lots of ways to do it. There are GUI tools; command line tools, in C or Python or Matlab.
But to start with I highly recommend using John's TimeLab:
http://www.ke5fx.com/timelab/readme.htm
Here's a sample 1PPS phase (time interval error) data file (from a hp 53132A):
http://leapsecond.com/pages/MG1613S/log167.txt
Or here's the same file in a more standard format:
http://leapsecond.com/pages/MG1613S/log167.dat
Use TimeLab->File->Import ASCII. If you can't figure out the boxes let us know.
Then all you do is type p or f or a or t to cycle through phase, frequency, ADEV or TDEV plots.
You will see something like this:
http://leapsecond.com/pages/MG1613S/log167-phase.gif
http://leapsecond.com/pages/MG1613S/log167-freq.gif
http://leapsecond.com/pages/MG1613S/log167-adev.gif

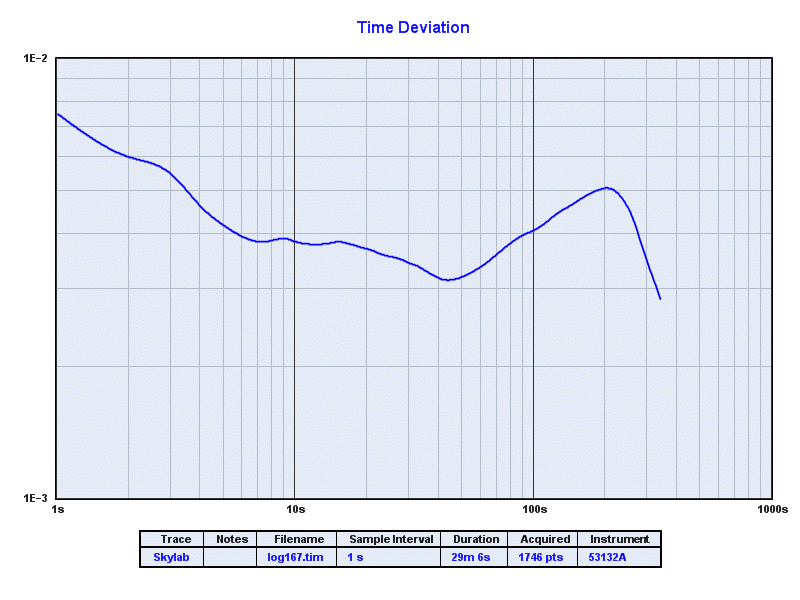

http://leapsecond.com/pages/MG1613S/log167-tdev.gif
/tvb
