[time-nuts] GPS receiver time message offsets to 1PPS

Hal Murray hmurray at megapathdsl.net
Tue Jul 26 03:51:27 EDT 2016

holrum at hotmail.com said:
> I originally thought the SCPI receivers would be right on time due to
> my original measurements of their message jitter,  but when I started
> measureing the actual message arrival times... surprise, surprise, surprise!
> I think the issue is due to the fact that they use Motorola receivers and
> those ramp the time the message comes out (1 msec per second).

One of us is confused.  Do you have a scope?

I have 2 different programs.  Both agree that the arrival time is stable.

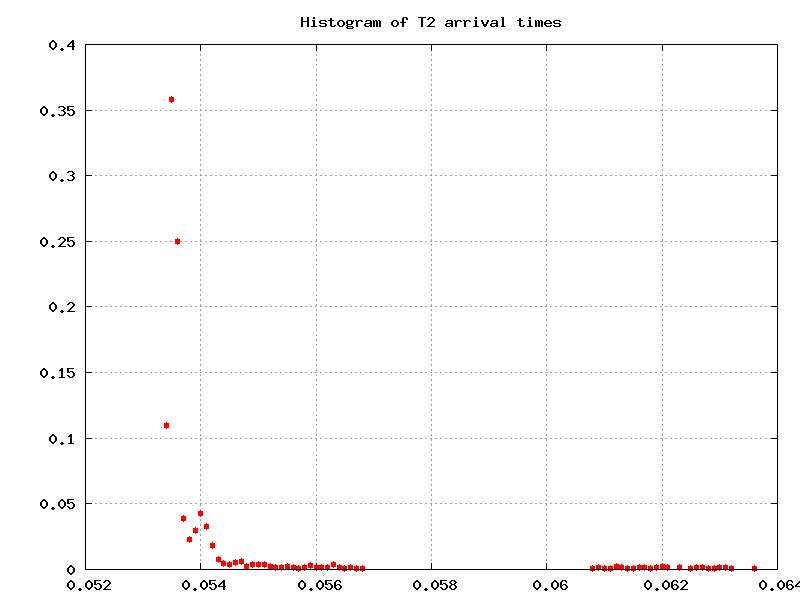

Attached is a histogram.  There is no PPS on the system collecting the data
so there is 200 micro-sec peak-peak of noise on the reference clock.  But
most of that is due to daily temperature swings and I don't have enough data
to cover that yet.

If you don't find anything, I'll clean up a program so you can run it on your

-------------- next part --------------
A non-text attachment was scrubbed...
Name: KS-T2-hist.png
Type: image/png
Size: 5020 bytes
Desc: KS-T2-hist.png
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20160726/910bf3e3/attachment-0001.png>
-------------- next part --------------
These are my opinions.  I hate spam.
