Tim wrote:

> The Pierce logic-gate-biased-active oscillator is pretty reliable to start
> and will oscillate somewhere with most crystals from kHz to MHz.
> As you found out, it will often come up on one of many overtones.
> To reduce chance of coming at an overtone, a series resistor from logic
> gate output to the crystal is often enough. If not, a RC low-pass will cut
> down even further (although of course adding phase shift.)

The general strategy for discouraging overtone operation and other
unwanted modes at frequencies above the crystal fundamental is to design

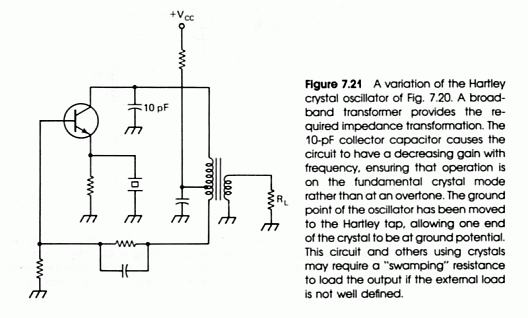

the gain element to have decreasing gain at higher frequencies.  The
figure attached below (from Hayward's "introduction to RF Design") shows
one common implementation.

One of Bernd's papers has some helpful information about low-frequency
crystals and oscillator circuits.  See pp. 1-3 of:


Best regards,


-------------- next part --------------
A non-text attachment was scrubbed...
Name: IRFD_LF_xtal_osc_email.gif
Type: image/gif
Size: 34157 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20160604/944a98c8/attachment.gif>
