[time-nuts] Old xtal filter

Joseph Gray jgray at zianet.com
Sun Mar 6 14:31:47 EST 2016

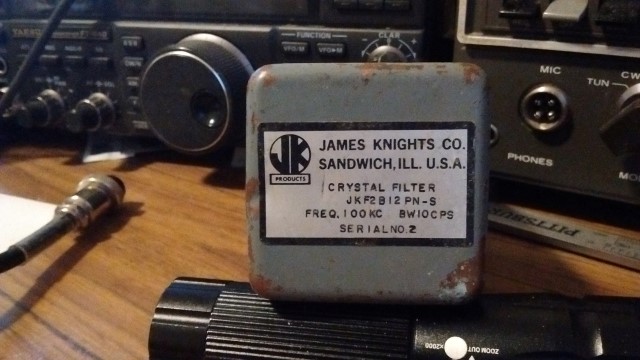

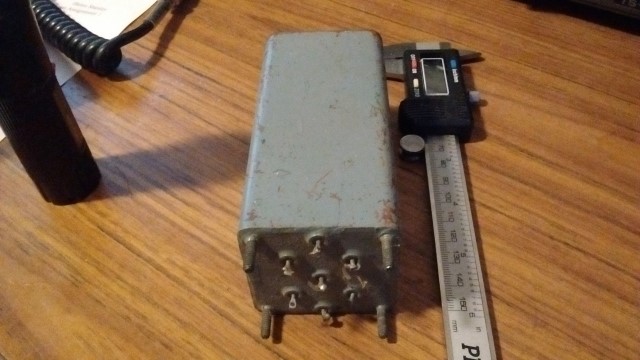

Assuming I made the pictures small enough, attached are two images of
an very old crystal filter that a friend found. The strange thing
about it is the bandwidth - 100 Hz. What could this have been used
for, with such a narrow bandwidth?


Joe Gray
W5JG
