[time-nuts] high rev isolation amps

Charles Steinmetz csteinmetz at yandex.com
Tue Mar 29 06:47:41 EDT 2016


See below for schematics of the NIST isolation amplifiers from 1990
and 1997.  NIST reported the isolation as >120dB.

I built isolation amplifiers similar to these (with lower-noise power
supplies and biasing tinkered slightly for better dynamic range), and
with careful construction achieved isolation substantially better
than 120dB (see my post of 11/25/14 for more details).

Best regards,

Charles
-------------- next part --------------
A non-text attachment was scrubbed...

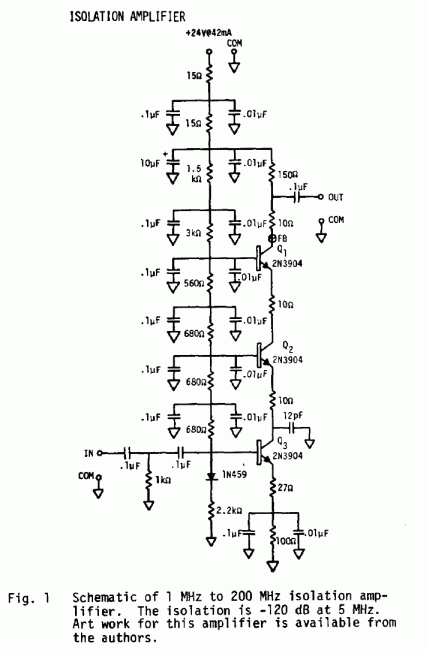

Name: NIST_120dB_isolation_amplifier_schematic_email.gif
Type: image/gif
Size: 30567 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20160329/1cd115ac/attachment-0002.gif>
-------------- next part --------------
A non-text attachment was scrubbed...

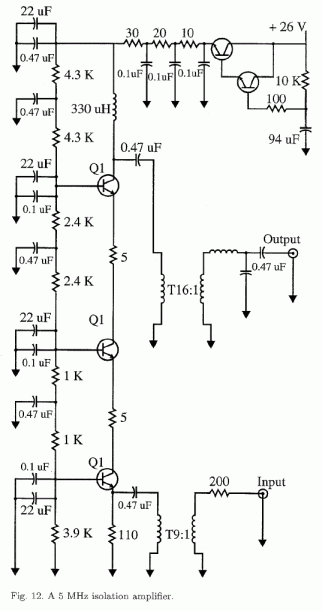

Name: Iso_amp_NIST_schematic_with_values_5MHz_1997_email.gif
Type: image/gif
Size: 28449 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20160329/1cd115ac/attachment-0003.gif>
