[time-nuts] HP 5275A

Robert LaJeunesse lajeunesse at mail.com
Sun Nov 6 18:08:11 EST 2016

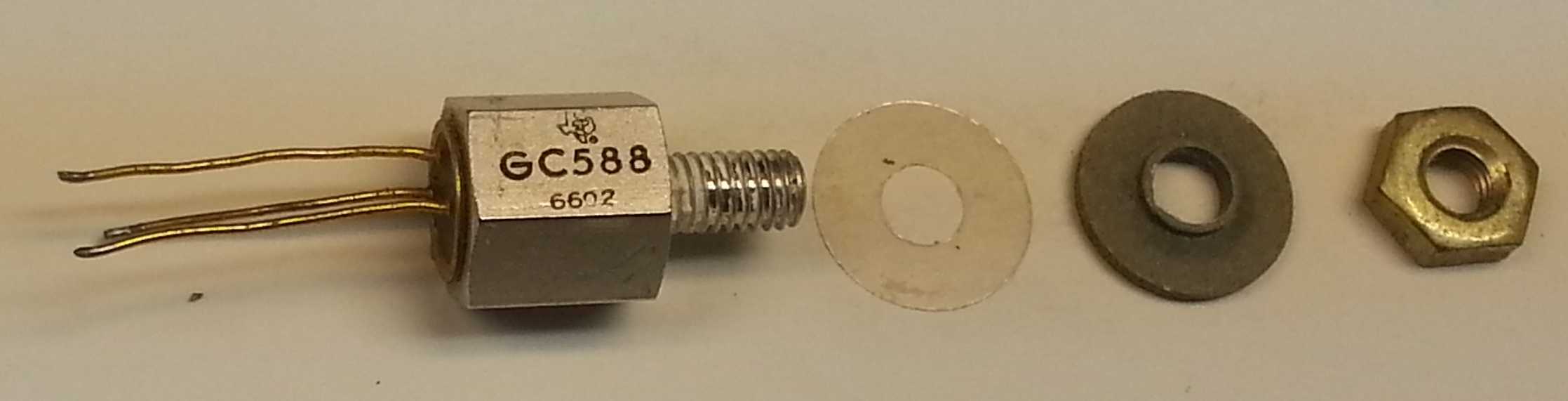

Here's a picture of the package you have, with the TI logo on the "heatsink". I pulled it just now from an old car stereo. The PNP Germanium GC588 crosses - not correctly! - to a differently packaged NTE102A which is rated for 1A and 32V with some decent gain. I suspect the GC588 is closer to your 2N1038-2, which is rated 3A. If one or two of these (curve tracer tested, even) would help you just send me an address off list.

Bob LaJeunesse
Ann Arbor, MI

> Sent: Sunday, November 06, 2016 at 1:59 PM
> From: "Adrian Godwin" <artgodwin at gmail.com>
> To: "Discussion of precise time and frequency measurement" <time-nuts at febo.com>
> Subject: [time-nuts] HP 5275A
> Slightly off-topic, as this is a general repair question. But it's a TIC.
> I'm repairing a 5275A timer (all-discreet count logic to 100MHz, neon bulb
> display, a most amazing bcd to decimal decoder made from neons and LDRs,
> 1-2-2-4 decade counters ..) and the current problem is a 2n1038-2 germanium
> T05 transistor in the power supply.
> It's mounted in an aluminium bush which is then isolated from the chassis.
> I don't think the bush is also a collet but I can't see how to remove the
> transistor. It resists ungentle pushing .. should I push it with a hammer ?
> Or is there a kinder way ?
> (I'm hoping to eventually put this into a system with a 101A oscillator and
> a 9815A calculator to measure the ADEV of a Boule electric pendulum clock).
> _______________________________________________
> time-nuts mailing list -- time-nuts at febo.com
> To unsubscribe, go to https://www.febo.com/cgi-bin/mailman/listinfo/time-nuts
> and follow the instructions there.
-------------- next part --------------
A non-text attachment was scrubbed...
Name: GC588_Transistor.jpg
Type: image/jpeg
Size: 49326 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20161107/e8b5a7c9/attachment.jpg>
